5300 series
Premium compact ultrasound system
5300 series
Premium compact ultrasound system

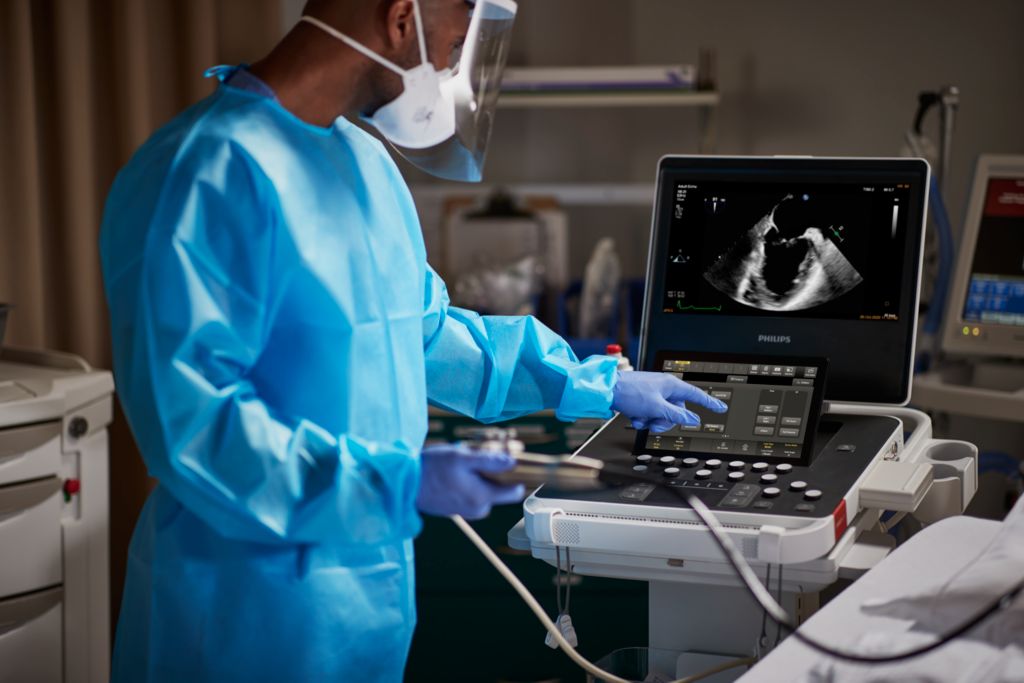

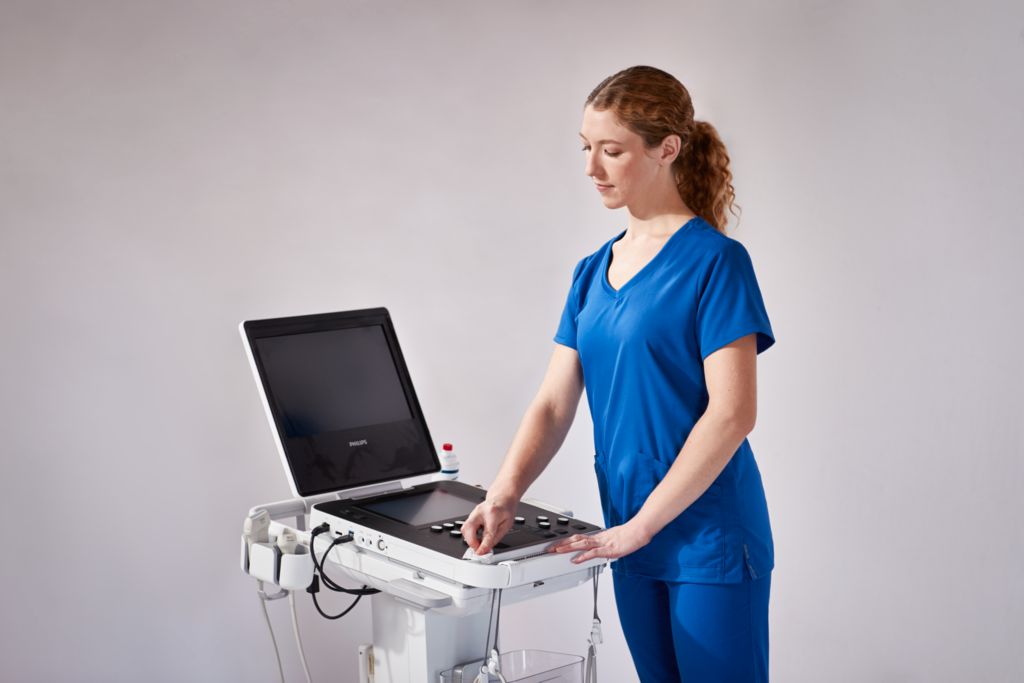

Philips Compact Ultrasound System 5000 series brings full functionality and quick, confident answers to you, wherever you are. Designed for the many different clinical environments in general imaging, point-of-care, and obstetrics and gynecology, the Philips Ultrasound 5300 model offers a feature-rich core and a versatile range of diagnostic solutions – all built into a highly mobile, cleanable, easy-to-use system.
Clinical image gallery
- Transverse liver with hepatic veins
- Endovaginal uterus
- Lung plueral lining
- Cardiac transesophageal with mitral regurgitation
- Cardiac plax view
- Breast Tissue with Multiple Fibroadenomas
- 3D fetal face with V6-2 and TrueVue
- Brachial plexus nerves
- 3D9-3v early OB with FlexVue
- Optic nerve
- Carotid artery-dual display
- Left ventricular outflow tract
- Longitudinal Liver with Inferior Vena Cava Hepatic Veins and Abdominal Aorta CC
- Longitudinal thyroid lobe with nodule
- Shoulder rotator cuff
- Longitudinal common carotid artery
- Cardiac apical four chamber view with mitral inflow
Features
Exceptional image quality
Clear images offer first-scan answers that quickly inform and confirm your diagnosis and decrease the need for costly and time-consuming rescans.
Streamlined workflow
With premium-level clarity available in a compact size, you can scan more patients, and also quickly and confidently diagnose patients regardless of the clinical setting
Uncompromised growth
Sharing the architecture of the Philips EPIQ and Affiniti ultrasound systems, the 5000 Compact series ultrasound systems are part of a solution that can be built over time, staying at the cutting edge with upgrades as your needs evolve.
Specifications
- Compact System
- Width
- 411.9 cm/16.2 in
- Height
- 86.6 cm/3.4 in
- Depth
- 406.6 cm/16.0 in
- Weight
- 10.57 kg/23.3 lb including internal battery
- Monitor
- 15.6" 1920x1080 LCD panel
- Power
- 100-140 V, ~50-60 Hz, 250 VA
- AC adapter
- Input: 100-240 VAC, 50/60 HZ
- Output: 24 VDC @ 250 W
- Power consumption
- 310 VA
- System battery
- 14.4 VDC. 98 WH
- AUX display port
- 1920x1080 resolution
- Connectors
- Ethernet and two USB 3.0 connectors
- Compact Cart
- Cart base
- 488.8 mm x 488.8 mm (19.2" x 19.2")
- Vertical adjustment
- 820-1001 mm (32.2"-39.3”)
- Wheels
- Four 5” locking swivel wheels
- rear two wheels include steering lock mechanism
- Other specification details
- Integrated Ethernet connector
- Integrated keyboard in slide out drawer
- Probe holders on both sides to accommodate up to four transducers
- Three storage bins provided, large, small and rear handle tray
- Two USB connectors
- Power consumption
- 660 VA max
- depending on system configuration
- Standard cart
- Input: 100-240 VAC, 50/60 Hz
- Integrated AC adapter in bottom compartment
- Integrated keyboard in slide-out drawer
- Output: 24 VDC @ 250 W
- Extended cart
- Input: 100-240 VAC, 50/60 Hz
- Integrated keyboard in slide-out drawer
- Output: 24 VDC @ 250 W + 5 V @ 1 W
- Three batteries to provide additional scanning time
- Deluxe cart
- Input: 100-240 VAC, 50/60 Hz
- Integrated keyboard in slide-out drawer
- Multiport adapter provides ports for attaching up to three imaging transducers
- Output: 24 VDC @ 250 W + 5 V @ 1 W
- Three batteries to provide additional scanning time
- Premium cart
- Input: 100-240 VAC, 50/60 Hz
- Integrated keyboard in slide-out drawer
- Multiport adapter provides ports for attaching up to three imaging transducers
- Output: 24 VDC @ 250 W + 5 V @ 1 W
- Small profile B/W video printer
- Three batteries to provide additional scanning time
