  1. Ultrasound
  2. 5500 series
5500 series
Premium compact ultrasound system
Ultrasound
‌
‌
‌
‌
‌
‌
‌
‌
‌

5500 series

Premium compact ultrasound system
Ultrasound
Philips Compact Ultrasound System 5000 series brings full functionality and quick, confident answers to you, wherever you are. Designed for the many different clinical environments in general imaging, point-of-care, and obstetrics and gynecology, the Philips Ultrasound 5500 model offers a feature-rich core and a versatile range of diagnostic solutions – all built into a highly mobile, cleanable, easy-to-use system.

For all support resources and contact information, visit our Support hub.
Exceptional image quality
Advanced capabilities
Streamlined workflow

Clinical image gallery

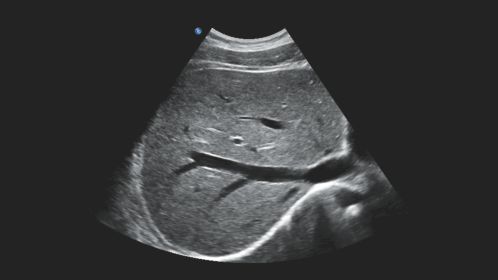

  • Transverse liver with hepatic veins
    Transverse liver with hepatic veins
  • Endovaginal uterus
    Endovaginal uterus

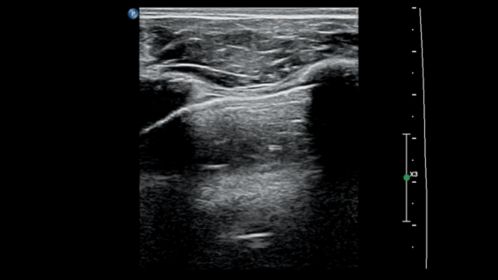

  • Lung plueral lining
    Lung plueral lining

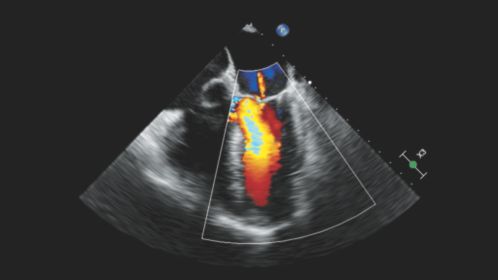

  • Cardiac transesophageal with mitral regurgitation
    Cardiac transesophageal with mitral regurgitation

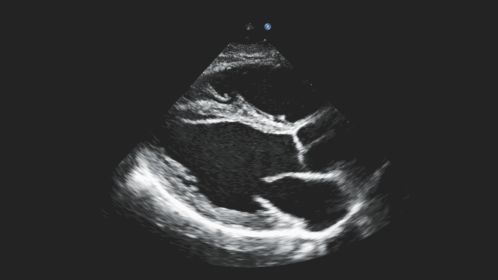

  • Cardiac plax view
    Cardiac plax view

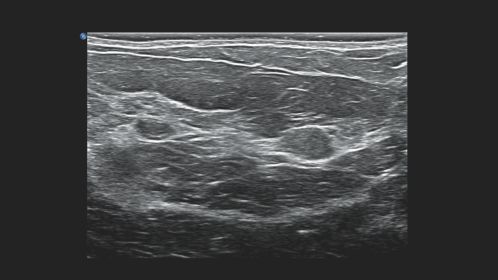

  • Breast Tissue with Multiple Fibroadenomas
    Breast Tissue with Multiple Fibroadenomas
  • 3D fetal face with V6-2 and TrueVue
    3D fetal face with V6-2 and TrueVue

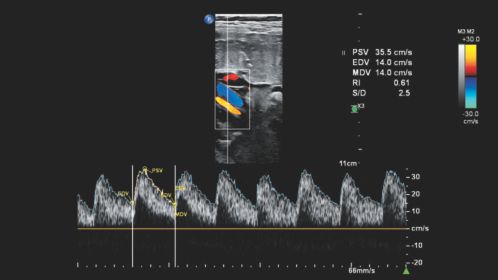

  • eL18-4 umbilical cord Doppler
    eL18-4 umbilical cord Doppler

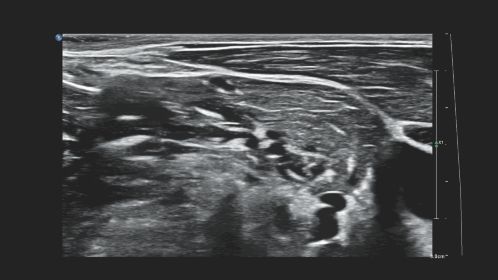

  • Brachial plexus nerves
    Brachial plexus nerves

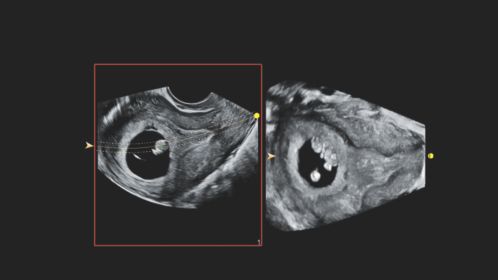

  • 3D9-3v early OB with FlexVue
    3D9-3v early OB with FlexVue

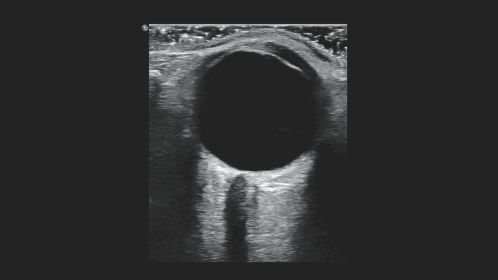

  • Optic nerve
    Optic nerve

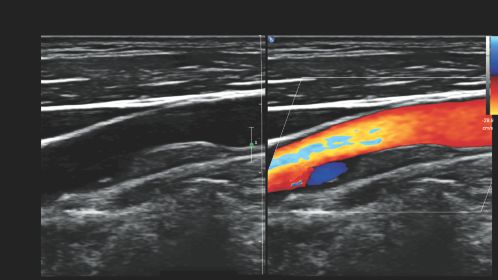

  • Carotid artery-dual display
    Carotid artery-dual display
  • Left ventricular outflow tract
    Left ventricular outflow tract
  • Fetal brain image with the eL18-4 transducer
    Fetal brain image with the eL18-4 transducer

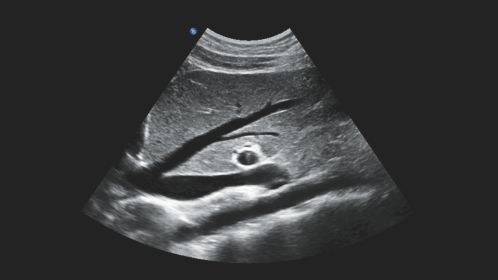

  • Longitudinal Liver with Inferior Vena Cava Hepatic Veins and Abdominal Aorta CC
    Longitudinal Liver with Inferior Vena Cava Hepatic Veins and Abdominal Aorta CC

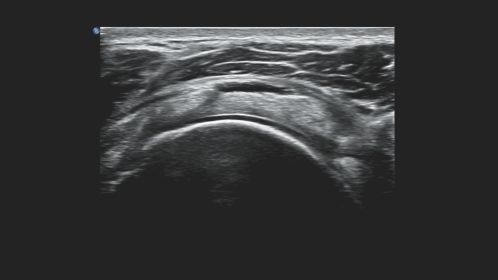

  • Shoulder rotator cuff
    Shoulder rotator cuff

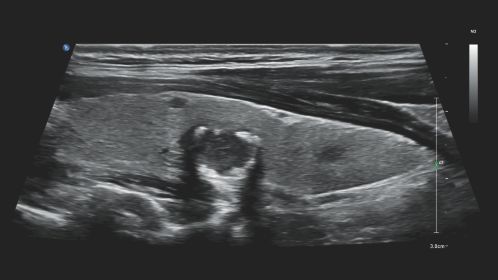

  • Longitudinal thyroid lobe with nodule
    Longitudinal thyroid lobe with nodule

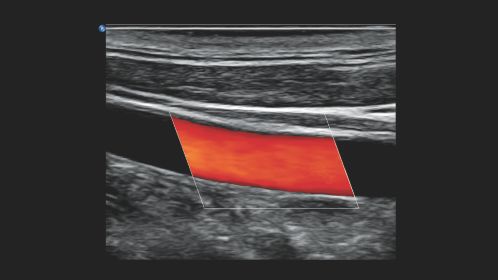

  • Longitudinal common carotid artery
    Longitudinal common carotid artery

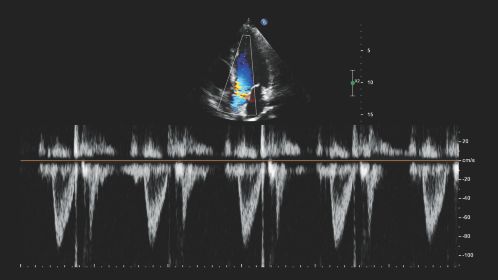

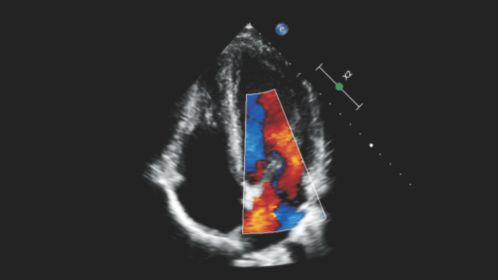

  • Cardiac apical four chamber view with mitral inflow
    Cardiac apical four chamber view with mitral inflow
Features
Exceptional image quality
Clear images offer first-scan answers that quickly inform and confirm your diagnosis and decrease the need for costly and time-consuming rescans.
Exceptional image quality
Streamlined workflow
With premium-level clarity available in a compact size, you can scan more patients, and also quickly and confidently diagnose patients regardless of the clinical setting
Streamlined workflow
Uncompromised growth
Sharing the architecture of the Philips EPIQ and Affiniti ultrasound systems, the 5000 Compact series ultrasound systems are part of a solution that can be built over time, staying at the cutting edge with upgrades as your needs evolve.
Uncompromised growth


Specifications
  • Compact Cart
    Cart base
    488.8 mm x 488.8 mm (19.2" x 19.2")
    Vertical adjustment
    820-1001 mm (32.2"-39.3”)
    Wheels
    • Four 5” locking swivel wheels
    • rear two wheels include steering lock mechanism
    Other specification details
    • Integrated Ethernet connector
    • Integrated keyboard in slide out drawer
    • Probe holders on both sides to accommodate up to four transducers
    • Three storage bins provided, large, small and rear handle tray
    • Two USB connectors
    Power consumption
    • 660 VA max
    • depending on system configuration
    Standard cart
    • Input: 100-240 VAC, 50/60 Hz
    • Output: 24 VDC @ 250 W
    • Integrated keyboard in slide-out drawer
    • Integrated AC adapter in bottom compartment
    Extended cart
    • Input: 100-240 VAC, 50/60 Hz
    • Output: 24 VDC @ 250 W + 5 V @ 1 W
    • Integrated keyboard in slide-out drawer
    • Three batteries to provide additional scanning time
    Deluxe cart
    • Input: 100-240 VAC, 50/60 Hz
    • Output: 24 VDC @ 250 W + 5 V @ 1 W
    • Integrated keyboard in slide-out drawer
    • Multiport adapter provides ports for attaching up to three imaging transducers
    • Three batteries to provide additional scanning time
    Premium cart
    • Input: 100-240 VAC, 50/60 Hz
    • Output: 24 VDC @ 250 W + 5 V @ 1 W
    • Integrated keyboard in slide-out drawer
    • Multiport adapter provides ports for attaching up to three imaging transducers
    • Small profile B/W video printer
    • Three batteries to provide additional scanning time
