5500CV
Portable Compact Ultrasound System
5500CV
Portable Compact Ultrasound System
Philips Compact Ultrasound System 5500CV brings full functionality and first-scan answers to you, wherever you are. Offering a feature-rich core, a range of diagnostic solutions, enhanced cleanability and wireless connectivity and reporting, Philips Compact Ultrasound System 5500CV is one of the most reliable and robust compact systems on the market.
Shared UI and workflow with EPIQ CVx and Affiniti CVx systems
Transducer interoperability across the Philips portfolio
Fast, reproducible 2D strain quantification for the LV
Clinical image gallery
- 2D TEE left ventricle image using X8-2t transducer
- Cardiac apical four chamber view with mitral inflow shown using S5-1 transducer

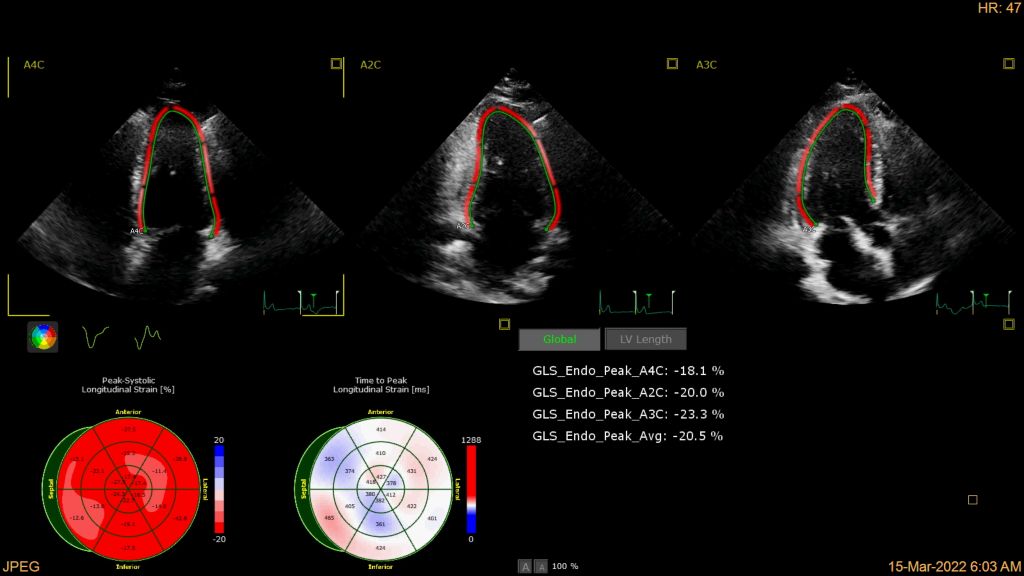

- AutoStrain LV showing GLS and results
- Tissue Doppler imaging shown using S5-1 transducer
- Aortic valve with pulsed wave Doppler shown using S5-1 transducer
- Color M-mode echo with S5-1 transducer
- 2D TEE w color with X7-2t transducer
Features
Shared UI and workflow with EPIQ CVx and Affiniti CVx system
Offering consistency across EPIQ CVx and Affiniti CVx systems, the Philips Ultrasound 5000 Series shares DNA – user interfaces, features, touchscreens, and workflow. And with standardized workflow comes increased efficiencies, including more exams in less time.

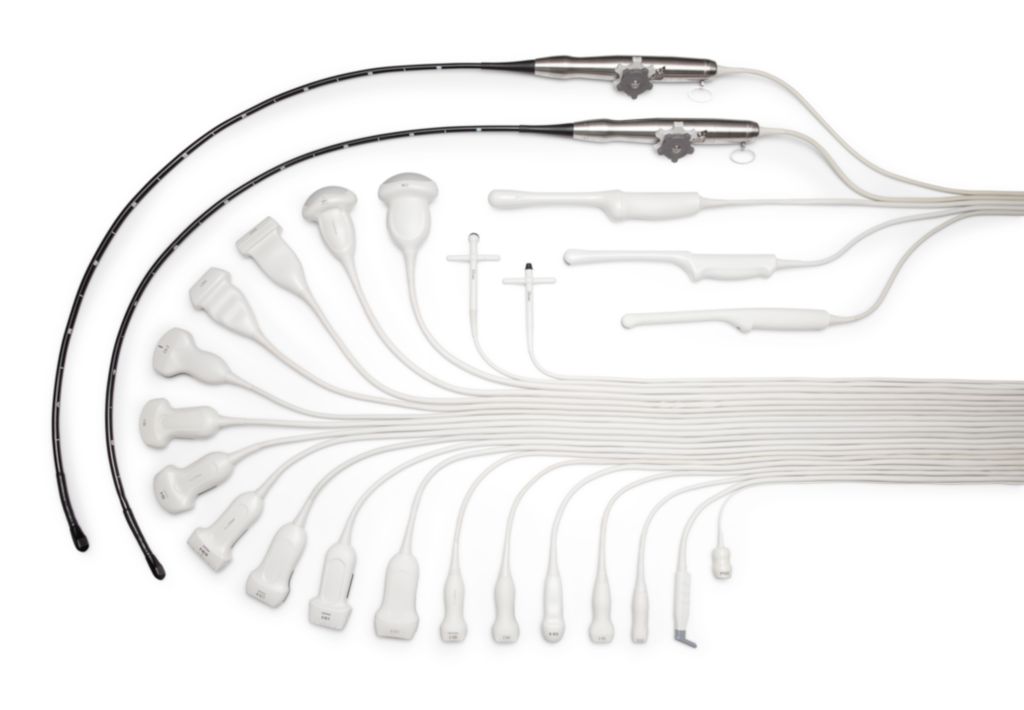

Transducer interoperability across the Philips portfolio
Shared transducers with EPIQ and Affiniti, ensuring consistency across the Philips portfolio.
Automation for reproducible cardiac quantification in 2D
AutoStrain delivers fast, reproducible 2D strain quantification for the LV. The AutoStrain LV application uses advanced Automatic View Recognition technology to identify the different views of the heart, providing exceptional visualization and analysis of left ventricular function extremely important diagnostic information for patients at risk of developing cardiovascular disease.
Specifications
- Compact System
- Width
- 411.9 cm/16.2 in
- Height
- 86.6 cm/3.4 in
- Depth
- 406.6 cm/16.0 in
- Weight
- 10.57 kg/23.3 lb including internal battery
- Monitor
- 15.6" 1920x1080 LCD panel
- Power
- 100-140 V, ~50-60 Hz, 250 VA
- AC adapter
- Input: 100-240 VAC, 50/60 HZ
- Output: 24 VDC @ 250 W
- Power consumption
- 310 VA
- System battery
- 14.4 VDC. 98 WH
- AUX display port
- 1920x1080 resolution
- Connectors
- Ethernet and two USB 3.0 connectors
- Compact Cart
- Cart base
- 488.8 mm x 488.8 mm (19.2" x 19.2")
- Vertical adjustment
- 820-1001 mm (32.2"-39.3”)
- Wheels
- Four 5” locking swivel wheels
- rear two wheels include steering lock mechanism
- Other specification details
- Integrated Ethernet connector
- Integrated keyboard in slide out drawer
- Probe holders on both sides to accommodate up to four transducers
- Three storage bins provided, large, small and rear handle tray
- Two USB connectors
- Power consumption
- 660 VA max
- depending on system configuration
- Standard cart
- Input: 100-240 VAC, 50/60 Hz
- Output: 24 VDC @ 250 W
- Integrated AC adapter in bottom compartment
- Integrated keyboard in slide-out drawer
- Extended cart
- Input: 100-240 VAC, 50/60 Hz
- Output: 24 VDC @ 250 W + 5 V @ 1 W
- Integrated keyboard in slide-out drawer
- Three batteries to provide additional scanning time
- Deluxe cart
- Input: 100-240 VAC, 50/60 Hz
- Output: 24 VDC @ 250 W + 5 V @ 1 W
- Integrated keyboard in slide-out drawer
- Multiport adapter provides ports for attaching up to three imaging transducers
- Three batteries to provide additional scanning time
- Premium cart
- Input: 100-240 VAC, 50/60 Hz
- Output: 24 VDC @ 250 W + 5 V @ 1 W
- Integrated keyboard in slide-out drawer
- Multiport adapter provides ports for attaching up to three imaging transducers
- Small profile B/W video printer
- Three batteries to provide additional scanning time
