General Imaging Ultrasound

Auto ElastQ

Automated, accurate and reproducible results for liver shear wave elastography


Automate your liver elastography exams with Auto ElastQ: precision, reproducibility and ease of use – all in one solution! Auto ElastQ automatically analyzes elastography loops and selects frames for measurement within a 2D shear wave elastography (ElastQ) image. It also recommends measurement locations within these selected frames. The liver stiffness measurements obtained from liver shear wave elastography can be used to diagnose and stage patients with liver fibrosis.

ElastQ Video Comparison Still

Auto ElastQ

Watch a side-by-side comparison to see how Auto ElastQ saves time and exam steps


Auto ElastQ is faster than conventional ElastQ and requires significantly fewer manual steps. Watch the video to see how they compare.

Demonstrated results with Auto ElastQ technology

60%

faster


Auto ElastQ can reduce liver shear wave elastography exam time by up to 60%.*

99%

reliability

Auto ElastQ offers 99% reliability of automated acquired liver shear wave measurements.*

29%

fewer steps

Auto ElastQ can reduce the number of steps to acquire liver shear wave measurements by up to 29%.*

Features

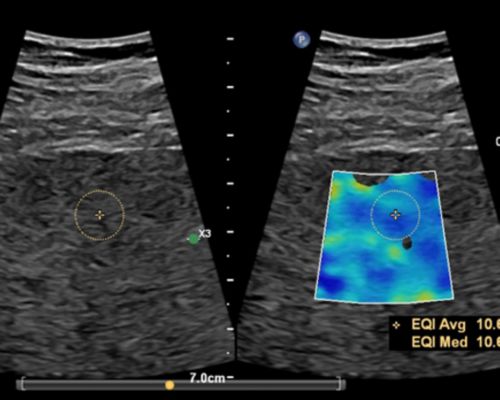

Frame selection

Frame selection


Elastography measurements should be made on frames that show stable and consistent shear wave propagation. Auto ElastQ identifies and selects these stable frames by comparing each frame to its neighbors and choosing only those frames that are very similar to adjacent frames and have a high percentage of fill inside the ElastQ imaging box.

Quality metrics

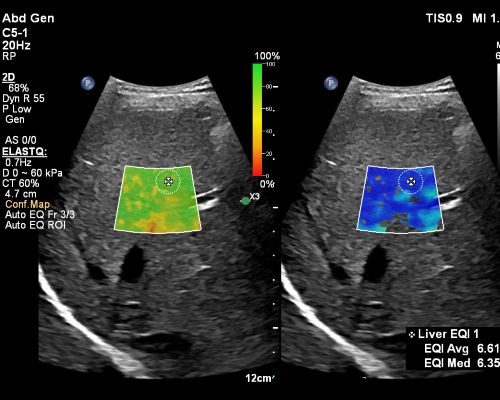

Quality metrics


Auto ElastQ analyzes the ElastQ image based on three quality metrics: smoothness within each local region, temporal stability of each region relative to the same regions in adjacent frames and the similarity of each pixel relatively to the rest of the pixels inside the box. This ensures that the region of interest is placed in a location that is representative of the majority of the pixels in the ElastQ imaging box.

ROI selection

ROI selection


The three quality metrics are combined into one composite map. The peak in this composite map, along with the confidence map, is used to select the region of interest for measurement.

alt text for featured item

Featured product

Automated assistance for liver elastography technology is available on

  •

    Affiniti 70

    The Affiniti 70 ultrasound system offers a powerful combination of performance and workflow for quick, confident diagnosis.

  •

    Affiniti 50

    Choosing a new ultrasound system is all about balance. You need accurate diagnostic information quickly, a simplified yet intuitive user interface, and easy access to critical features, along with an ergonomic design and the latest technology.

  •

    C5-1

    Learn more about the Philips C5-1 broadband curved array transducer with PureWave crystal technology in the specification table below.

    989605412041
  •

    C9-2

    Learn more about the Philips C9-2 broadband curved array transducer with PureWave crystal technology in the specification table below.

    989605391091
