CombiDiagnost R90
Cross functional DRF system
CombiDiagnost R90
Cross functional DRF system
This remote controlled fluoroscopy system in combination with high-end digital radiography is designed for consistent, superb image quality and high room utilization, in a cost effective manner.
Supports diagnostic confidence
Detectors that deliver
Superb image quality at low dose
Features
Supports diagnostic confidence
Cutting edge digital radiography capabilities convert your traditional fluoroscopy room into a high throughput 2-in-1 solution. Designed to support confident diagnoses with high image quality together with excellent dose management features that benefit both patients and staff.
Detectors that deliver
The CombiDiagnost R90’s large and small SkyPlate wireless portable digital detectors are lightweight to allow for comfortable positioning. They pair nicely with our SkyFlow intelligent software for non-grid bedside exams and can be shared between compatible systems.
Hidden details revealed
Dynamic UNIQUE image processing software delivers consistently uniform clinical image quality for all anatomic regions by automatically adjusting the balance between overexposed and underexposed areas, providing superb quality for both radiography and fluoroscopy studies.
Specifications
- Tube: SRO 33100 ROT380 (for CS)
- Maximum voltage
- 150 kV
- Anode heat storage capacity
- 300 kHU (200kJ)
- focal spot
- 0.6 /1.2
- Ceiling Suspension
- Type
- Four-part telescopic column
- Ceiling height at SID 110 cm (44")
- 2.83 m to 3.21 m (8'8.3" - 10'5.9")
- Collimator
- Motorized, automatic
- Wireless detector: SkyPlate Large
- Active area
- 34.48 cm x 42.12 cm (13.6" x 16.6")
- Image matrix size
- 2330 x 2846 pixel
- Detector size
- 35 cm x 43 cm (14" x 17")
- Type
- Digital Csl (Cesium Iodide) flat detector
- Wireless detector: SkyPlate Small
- Image matrix size
- 1500 x 1920 pixel
- Active area
- 22.2 cm x 28.4 cm (8.7" x 11.2")
- Type
- Digital Csl (Cesium Iodide) flat detector
- Detector size
- 24 cm x 30 cm (app. 10" x 12")
- Tube: SRO 33100 ROT380
- Maximum voltage
- 150 kV
- focal spot
- 0.6 /1.6
- Anode heat storage capacity
- 300 kHU (200kJ)
- Tube: SRM 0608 ROT GS 505
- focal spot
- 0.6 /0.8
- Anode heat storage capacity
- 800 kHU (593kJ)
- Maximum voltage
- 125 kV (110 kV in GCF)
- Dynamic Flat Detector
- Acquisition mode continious fluoroscopy
- Up to 30 frames per second
- Pixel size
- 148 µm
- Acquisition mode pulsed fluoroscopy
- Up to 20 per second
- Image matrix size
- 2,874 pixel x 2,840 pixel
- Detector Size
- 43 cm x 43 cm (17"x17")
- Generator
- Fluoroscopy techniques
- Pulsed fluoroscopy (PF), in-pulse controlled
- Grid-controlled fluoroscopy (GCF), in-pulse controlled
- Tube voltage exposure
- 40 - 150 kV
- Exposure techniques
- Manual: kV-mAs or kV-mA-s
- Automatic Exposure Control (AEC) - Intelligent Exporuse (IQX), In-Pulse controlled
- Automatic kV reduction techniques
- Tube voltage flouroscopy
- 40 - 125 kV
- Power
- 65 kW, 80kW optional
- Geometry
- Maximum patient weight
- 284 kg (626 lbs) without limitations
- Table height
- 62 cm - 142 cm (24.4"-59.9")
- Tube column movement range
- 160 cm (63")
- Table tilt angle
- -90°/+90°
- Motorized compressor
- 3 kg - 15 kg (6.6 lbs - 33.1 lbs) compression force
- Digital vertical stand
- Detector Size
- SkyPlate detector
- Motorized tilting
- Optional, -20° to +90°
- Vertical travel
- 30 cm - 180 cm (11.8" - 5'11")
Recommended products
- Experience premium digital radiography productivity, with high performance rooms and flexible rooms right through to a cutting edge emergency set-up. Choose the configuration suited to your applications, workflow and budget.
- Philips SkyFlow reduces the effect of scattered radiation for non-grid bedside chest exams, allowing you to obtain DR images with grid-like contrast while avoiding the time and effort of attaching and detaching a grid.

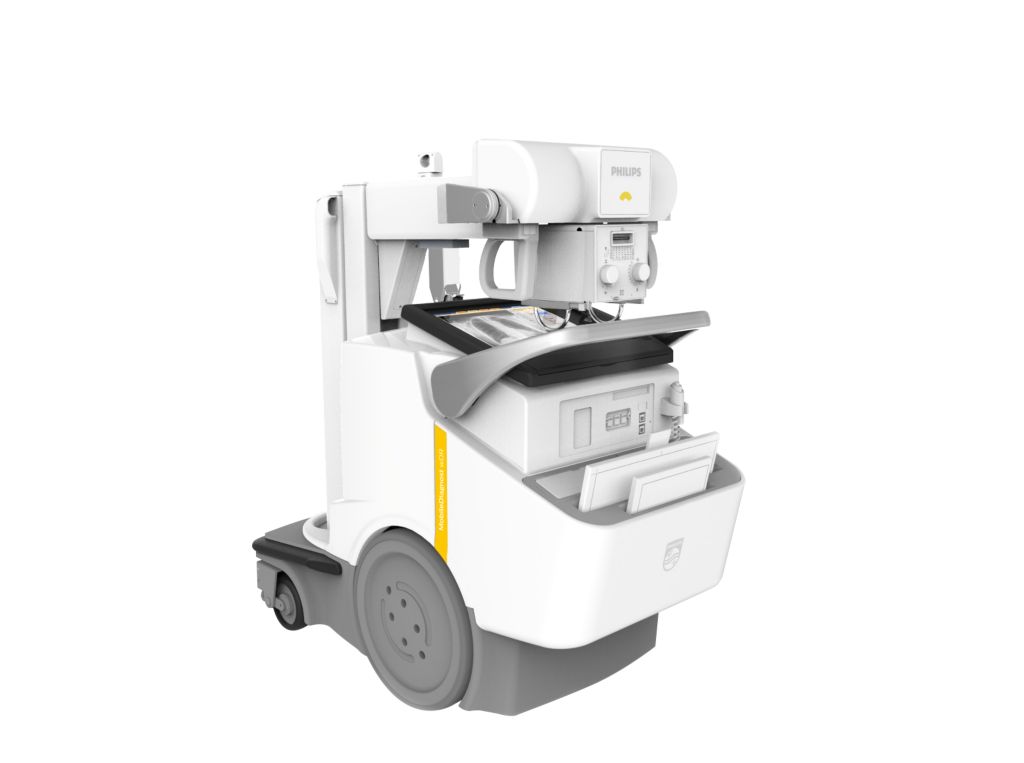

- The MobileDiagnost wDR with sliding column option offers excellent visibility making the system easy to drive and easy to park. This premium digital radiography system brings fast, high quality images to every area of the hospital.
