Core Mobile
Precision guided therapy system
Core Mobile
Precision guided therapy system

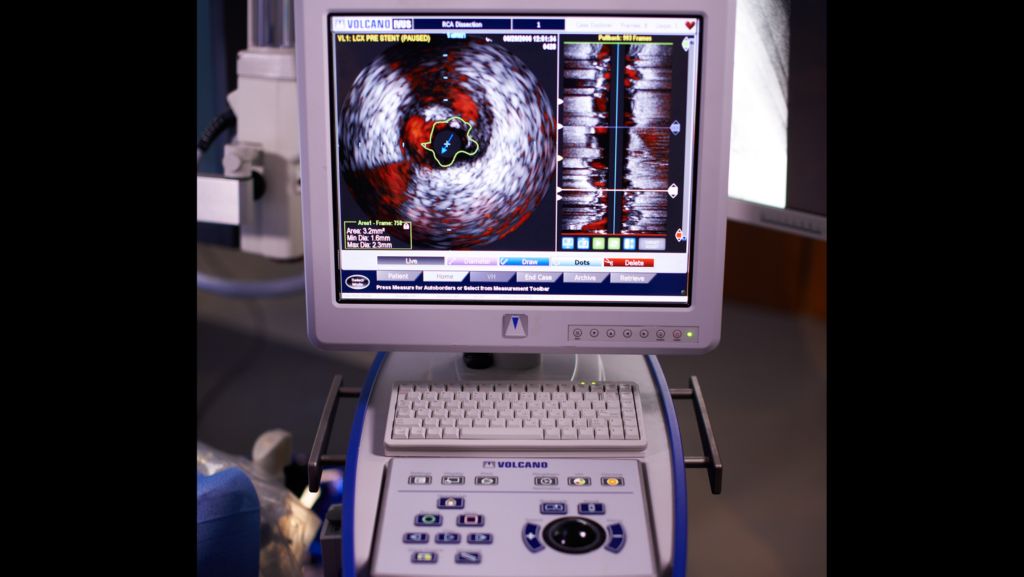

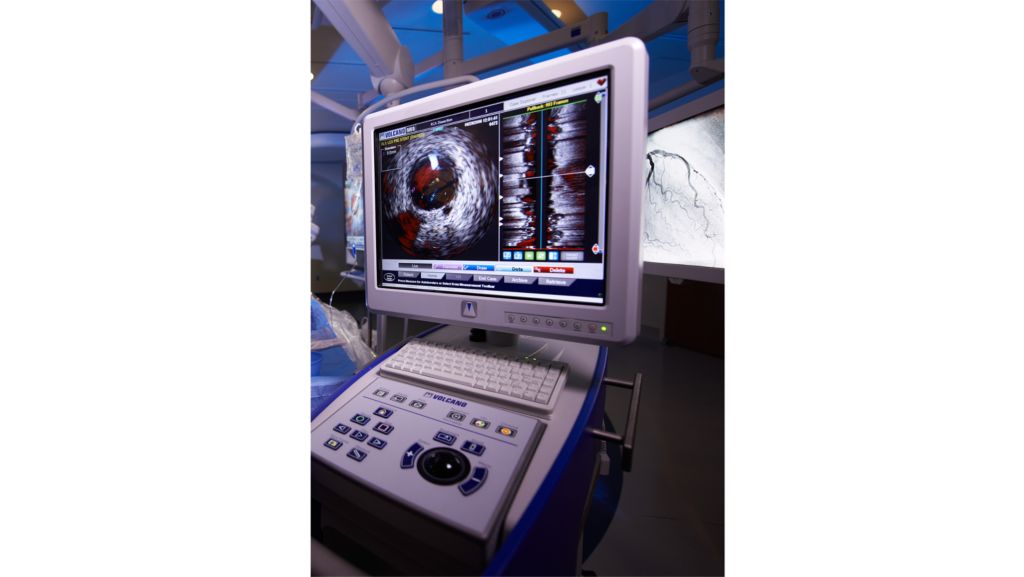

Core Mobile is designed to power the future of precision guided therapy and offers the choice of imaging and physiology on a single mobile platform.¹ Core Mobile also provides clarity in your approach and confidence in your results by offering additional information during the diagnostic phase, assisting in intervention decisions.
Features
One system, many choices

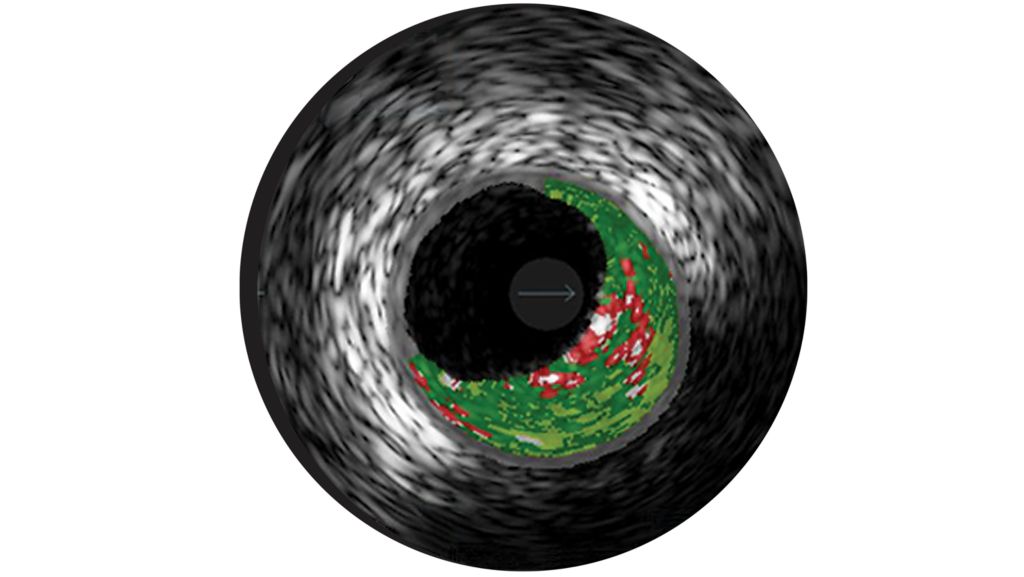

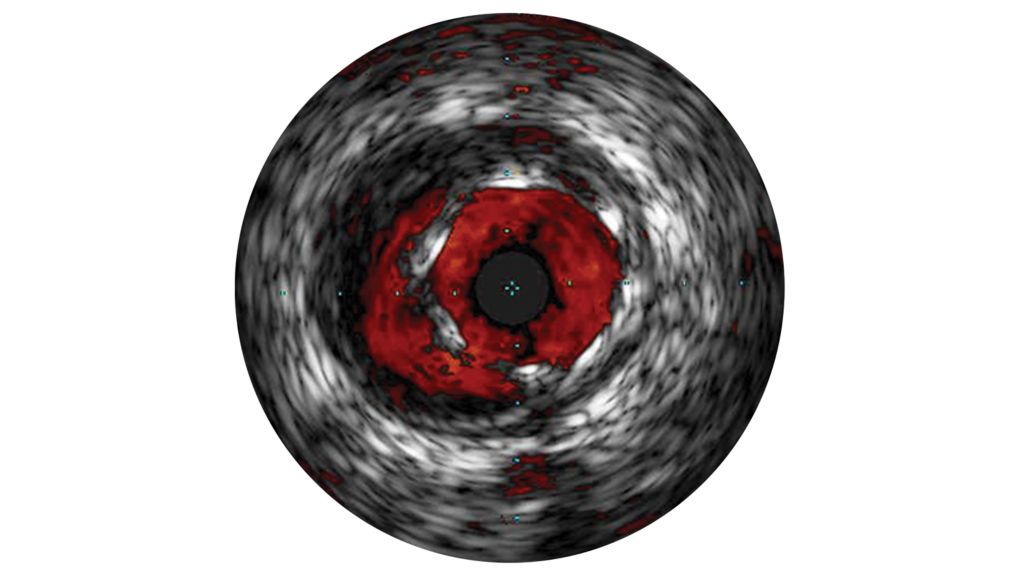

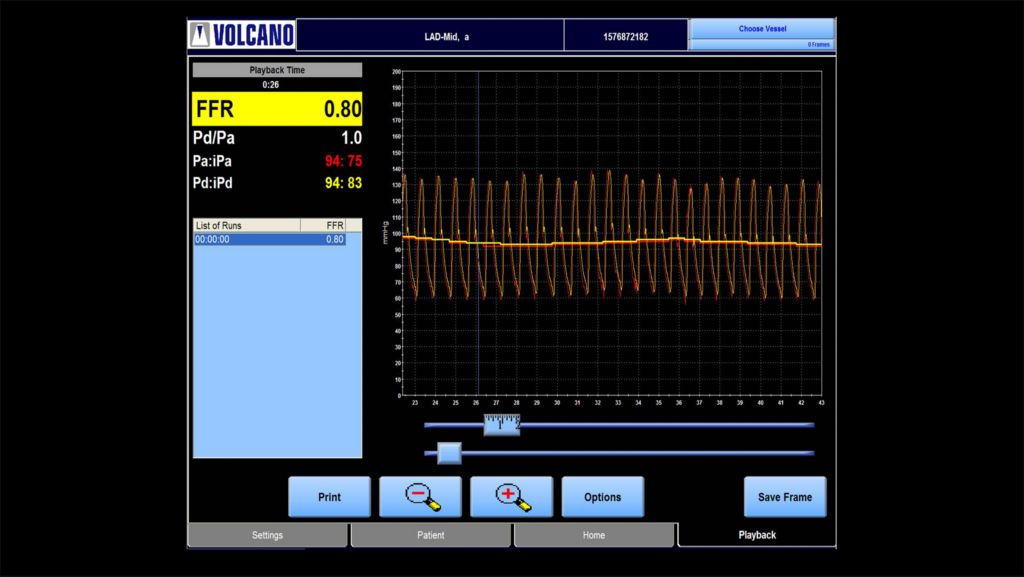

Core Mobile supports a full suite of imaging and physiology analysis tools including FFR lesion assessment, iFR modality, iFR Scout, digital IVUS, high resolution rotational IVUS, ChromaFlo stent apposition assessment, VH IVUS automatic tissue classification, and Pioneer Plus IVUS for peripheral procedures.

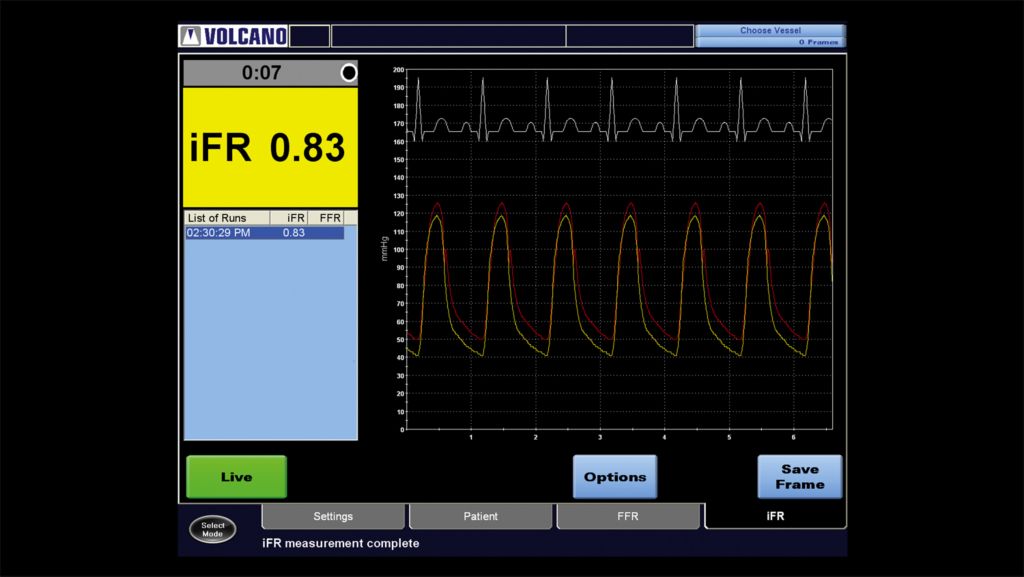

iFR modality simplifies workflow
iFR modality simplifies workflow by providing a hyperemia-free measurement to assess lesion significance in as few as five heartbeats. Philips’ proprietary iFR modality has a robust body of clinical evidence with over 9,000 patients in numerous studies and peer-reviewed journal articles.⁵

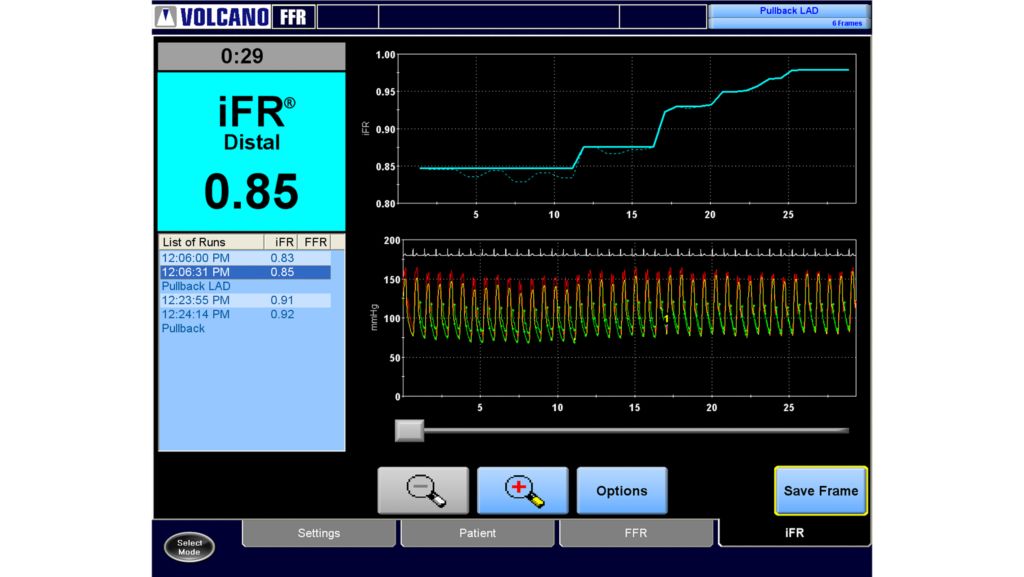

iFR Scout pullback
The iFR Scout pullback shows the most significant gradient in the mid-vessel lesion with diffuse proximal disease.
Specifications
- Power requirements
- System input
- 100, 120V or 240VAC, 50/60Hz, 1000VA Volts, volt alternating current, hertz, volt-ampere
- Dimensions
- Core Mobile
- H=62", W=22", D=33" Inches

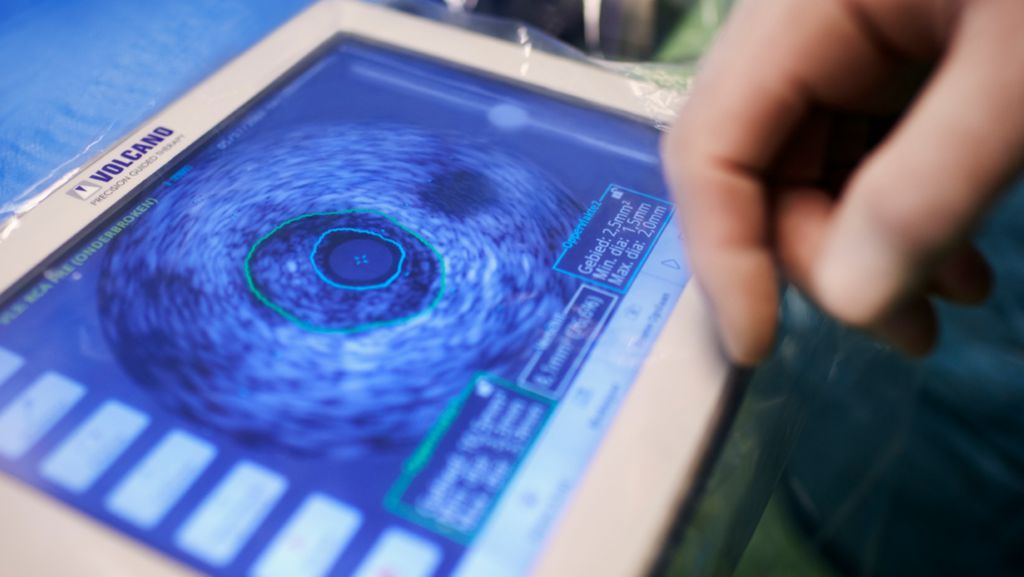

- Control Pad (optional)
- H=2.75", W=10.5", D=8.3" Inches
- Ordering information
- Core Mobile 120V
- COREmb120
- Control Pad
- CPADO1
- Bedrail mount
- MNTO1
- Monitor mount
- MNTO2
Related products
- The SyncVision precision guidance system streamlines lesion assessment, simplifies vessel sizing, and enables precise therapy delivery in conjunction with the existing fluoroscopic image stream.
- The Eagle Eye Platinum digital IVUS catheter is the #1 choice of physicians for intravascular imaging (in the US).* As a unique plug-and-play intravascular imaging catheter it is designed for ease of use and deliverability. Features include a soft tapered tip, GlyDx hydrophilic coating for increased lubricity, a long, rapid exchange lumen for improved pushability, three radiopaque markers, and compatibility with SyncVision for co-registration with angiography.
- The Eagle Eye Platinum ST digital IVUS catheter offers a 2.5 mm tip-to-imaging distance designed to assess more of the vessel than standard catheters by providing a closer visualization of highly stenosed lesions and distal anatomy. The short tip catheter fits through all 5F guides and has all features of our top-selling Eagle Eye Platinum model, including plug-and-play simplicity, three radiopaque markers, GlyDx hydrophilic coating, and SyncVision compatibility.*
- For over 20 years Philips has led the way in physiology, putting patients first through continuous innovation. Now introducing our 10ᵗʰ generation physiology wire: Verrata Plus.
- The Core precision guided therapy systems offer the choice of imaging and physiology on a single integrated platform.¹ Core helps provide clarity in your approach, confidence in your decisions, and convenience in your diagnostic and interventional workflows.
Disclaimer
1. 505-0100.21, Operator's Manual, Core Integrated, 3.4X (p. 18); 505-0101.16, Operator's Manual, s5 Series FFR_iFR Option, v3.4x (p.15).
2. VAL RPT, S5-Core V3.4 SW with Core Control Pad, 215-0007.02.
3. Product Spec. 809480-001, 202-0407.01.
4. Requirements Specification Meridian VH SW, 806000-004 (pg 84).
5. An iFR cut-point of 0.89 matches best with an FFR ischemic cut-point of 0.80 with a specificity of 87.8% and sensitivity of 73.0%. (iFR Operator’s Manual 505-0101.23)
6. N Engl J Med. 2012;367(11):991-1001.
7. Witzenbichler B et al. Relationship Between Intravascular Ultrasound Guidance and Clinical Outcomes After Drug-Eluting Stents: The ADAPT-DES Study. Circulation 2014 Jan: 129,4;463-470
8. Ahn et al. Meta-Analysis of Outcomes After Intravascular Ultrasound Guided Versus Angiography-Guided Drug-Eluting Stent Implantation in 26,503 Patients Enrolled in Three Randomized Trials and 14 Observational Studies. Am J Cardiol 2014; 113:1338-1347
9. Nair A, Margolis M, Kuban B, Vince D. Automated Coronary Plaque Characterisation with Intravascular Ultrasound Backscatter: Ex Vivo Validation. EuroIntervention. 2007; 3: 113-120
*Safety and efficacy of VH IVUS for use in the characterization of vascular lesions and tissue types has not been established
