×Sharp lets you see the true activity distribution – especially with small objects.
With ×Sharp, you can acquire images on Ingenuity TF PET/CT that show lesions and organ boundaries with high contrast thanks to resolution recovery.
×Sharp models and corrects for the effects of the scanner’s point spread function (PSF) resulting in resolution compensation in reconstructed Ingenuity PET/CT images and less blurring. The process is based on the computationally efficient iterative Richardson-Lucy maximum-likelihood algorithm which corrects partial volume effects in PET images.

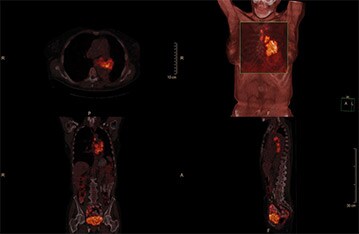

Images reconstructed with ×Fine for this lung cancer patient demonstrate enhanced lesion detectability.
Images courtesy of University Hospital Salzburg, Austria

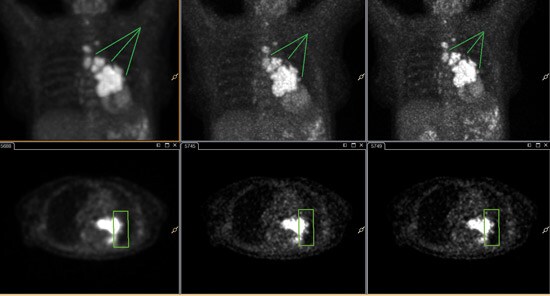

×Fine and ×Sharp further contribute to image quality, seen here in enhanced resolution. ×Fine reconstruction (center) and ×Fine with ×Sharp reconstruction (far right).
Applying resolution recovery to take into account the system’s inherent variability in resolution across a 3D space allows you to produce images that more closely reflect the actual objects scanned.

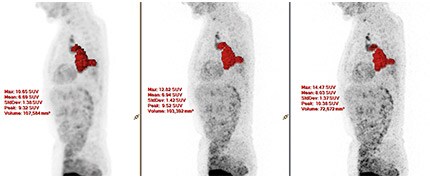

In a whole-body patient test study conducted by researchers at the University Hospital Salzburg, Austria, ×Sharp helped enhance the visualization of small lesions. Applying ×Sharp led to an increase in the lesion SUVmax compared with scans performed without ×Sharp. The lesions in the patients were in the 12-20 mm range.
Image courtesy of University Hospital Salzburg, Austria
Want to learn more about how research and clinical routines can benefit from xSharp and the entire xPand5 technology suite?
