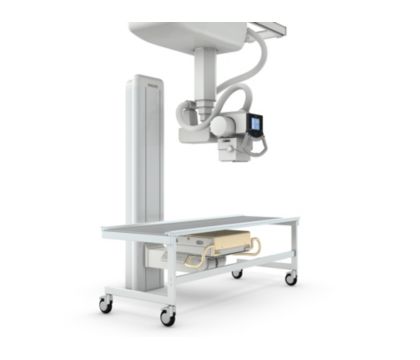

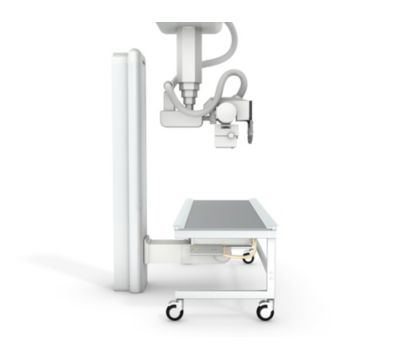

DigitalDiagnost C50

Ceiling mounted digital X-ray system

NOCTN502

Find similar products

This performance oriented ceiling mounted digital X-ray system with a fixed or wireless detector, motorised auto-tracking, a fully digital workflow, and UNIQUE image processing, delivers diagnostic quality images for fast, efficient exams.

Features
Extended clinical capability || 1
Extended clinical capability

Extended clinical capability

DigitalDiagnost C50 offers the versatility necessary to address a broad range of clinical applications in a cost-effective manner. Smooth operation, the latest generation wireless/fixed detectors, and cutting-edge post-processing features help assure comprehensive performance.

Extended clinical capability

Extended clinical capability
DigitalDiagnost C50 offers the versatility necessary to address a broad range of clinical applications in a cost-effective manner. Smooth operation, the latest generation wireless/fixed detectors, and cutting-edge post-processing features help assure comprehensive performance.

Extended clinical capability

DigitalDiagnost C50 offers the versatility necessary to address a broad range of clinical applications in a cost-effective manner. Smooth operation, the latest generation wireless/fixed detectors, and cutting-edge post-processing features help assure comprehensive performance.
Click here for more information
Extended clinical capability || 1
Extended clinical capability

Extended clinical capability

DigitalDiagnost C50 offers the versatility necessary to address a broad range of clinical applications in a cost-effective manner. Smooth operation, the latest generation wireless/fixed detectors, and cutting-edge post-processing features help assure comprehensive performance.
Ease of operation || 1
Ease of operation

Ease of operation

The ceiling suspended X-ray tube moves smoothly and manually into position. The vertical stand detector slides up/down and tilts a full 900 for easy horizontal exams. With vertical auto-tracking the motorized tube automatically follows the detector.

Ease of operation

Ease of operation
The ceiling suspended X-ray tube moves smoothly and manually into position. The vertical stand detector slides up/down and tilts a full 900 for easy horizontal exams. With vertical auto-tracking the motorized tube automatically follows the detector.

Ease of operation

The ceiling suspended X-ray tube moves smoothly and manually into position. The vertical stand detector slides up/down and tilts a full 900 for easy horizontal exams. With vertical auto-tracking the motorized tube automatically follows the detector.
Click here for more information
Ease of operation || 1
Ease of operation

Ease of operation

The ceiling suspended X-ray tube moves smoothly and manually into position. The vertical stand detector slides up/down and tilts a full 900 for easy horizontal exams. With vertical auto-tracking the motorized tube automatically follows the detector.
Quality digital X-ray images || 1
Quality digital X-ray images

Quality digital X-ray images

Your choice of latest generation wireless or fixed detector is paired with built-in APRs for a high level of exposure accuracy, AEC for consistent image quality, multi-resolution image processing, and optional standard stitching capabilities, to provide you with superb image quality.

Quality digital X-ray images

Quality digital X-ray images
Your choice of latest generation wireless or fixed detector is paired with built-in APRs for a high level of exposure accuracy, AEC for consistent image quality, multi-resolution image processing, and optional standard stitching capabilities, to provide you with superb image quality.

Quality digital X-ray images

Your choice of latest generation wireless or fixed detector is paired with built-in APRs for a high level of exposure accuracy, AEC for consistent image quality, multi-resolution image processing, and optional standard stitching capabilities, to provide you with superb image quality.
Click here for more information
Quality digital X-ray images || 1
Quality digital X-ray images

Quality digital X-ray images

Your choice of latest generation wireless or fixed detector is paired with built-in APRs for a high level of exposure accuracy, AEC for consistent image quality, multi-resolution image processing, and optional standard stitching capabilities, to provide you with superb image quality.
Patient focused workflow || 1
Patient focused workflow

Patient focused workflow

The intuitive Eleva user interface and workspot require only 3 clicks to complete an exam. Images appear on the screen in just 6 seconds. Pre-programmed auto exposure parameter settings for different patient types and views speed your procedures allowing to focus on your patient.

Patient focused workflow

Patient focused workflow
The intuitive Eleva user interface and workspot require only 3 clicks to complete an exam. Images appear on the screen in just 6 seconds. Pre-programmed auto exposure parameter settings for different patient types and views speed your procedures allowing to focus on your patient.

Patient focused workflow

The intuitive Eleva user interface and workspot require only 3 clicks to complete an exam. Images appear on the screen in just 6 seconds. Pre-programmed auto exposure parameter settings for different patient types and views speed your procedures allowing to focus on your patient.
Click here for more information
Patient focused workflow || 1
Patient focused workflow

Patient focused workflow

The intuitive Eleva user interface and workspot require only 3 clicks to complete an exam. Images appear on the screen in just 6 seconds. Pre-programmed auto exposure parameter settings for different patient types and views speed your procedures allowing to focus on your patient.
Powerful post-processing || 1
Powerful post-processing

Powerful post-processing

UNIQUE image processing on the DigitalDiagnost C50 harmonises contrast and enhances faint details to ensure consistent and outstanding image quality. Image display can be easily customised to suite your individual preferences.

Powerful post-processing

Powerful post-processing
UNIQUE image processing on the DigitalDiagnost C50 harmonises contrast and enhances faint details to ensure consistent and outstanding image quality. Image display can be easily customised to suite your individual preferences.

Powerful post-processing

UNIQUE image processing on the DigitalDiagnost C50 harmonises contrast and enhances faint details to ensure consistent and outstanding image quality. Image display can be easily customised to suite your individual preferences.
Click here for more information
Powerful post-processing || 1
Powerful post-processing

Powerful post-processing

UNIQUE image processing on the DigitalDiagnost C50 harmonises contrast and enhances faint details to ensure consistent and outstanding image quality. Image display can be easily customised to suite your individual preferences.
Integrated dose management aids || 1
Integrated dose management aids

Integrated dose management aids

You can easily check X-ray dose and perform accurate dose reporting with the built-in Dose Area Product (DAP) meter1. The manual collimator helps capture the area of interest only and avoids unnecessary radiation exposure to the patient. Optional grids enhance the contrast and quality of the image.

Integrated dose management aids

Integrated dose management aids
You can easily check X-ray dose and perform accurate dose reporting with the built-in Dose Area Product (DAP) meter1. The manual collimator helps capture the area of interest only and avoids unnecessary radiation exposure to the patient. Optional grids enhance the contrast and quality of the image.

Integrated dose management aids

You can easily check X-ray dose and perform accurate dose reporting with the built-in Dose Area Product (DAP) meter1. The manual collimator helps capture the area of interest only and avoids unnecessary radiation exposure to the patient. Optional grids enhance the contrast and quality of the image.
Click here for more information
Integrated dose management aids || 1
Integrated dose management aids

Integrated dose management aids

You can easily check X-ray dose and perform accurate dose reporting with the built-in Dose Area Product (DAP) meter1. The manual collimator helps capture the area of interest only and avoids unnecessary radiation exposure to the patient. Optional grids enhance the contrast and quality of the image.
Proven reliability || 1
Proven reliability

Proven reliability

DigitalDiagnost C50 pairs performance with ease-of-ownership. You enjoy the reliability of a proven Philips brand in a ceiling system that extends your clinical capacity, delivers strong ROI, and is supported by a global services network.

Proven reliability

Proven reliability
DigitalDiagnost C50 pairs performance with ease-of-ownership. You enjoy the reliability of a proven Philips brand in a ceiling system that extends your clinical capacity, delivers strong ROI, and is supported by a global services network.

Proven reliability

DigitalDiagnost C50 pairs performance with ease-of-ownership. You enjoy the reliability of a proven Philips brand in a ceiling system that extends your clinical capacity, delivers strong ROI, and is supported by a global services network.
Click here for more information
Proven reliability || 1
Proven reliability

Proven reliability

DigitalDiagnost C50 pairs performance with ease-of-ownership. You enjoy the reliability of a proven Philips brand in a ceiling system that extends your clinical capacity, delivers strong ROI, and is supported by a global services network.
  • Extended clinical capability || 1
  • Ease of operation || 1
  • Quality digital X-ray images || 1
  • Patient focused workflow || 1
See all features
Extended clinical capability || 1
Extended clinical capability

Extended clinical capability

DigitalDiagnost C50 offers the versatility necessary to address a broad range of clinical applications in a cost-effective manner. Smooth operation, the latest generation wireless/fixed detectors, and cutting-edge post-processing features help assure comprehensive performance.

Extended clinical capability

Extended clinical capability
DigitalDiagnost C50 offers the versatility necessary to address a broad range of clinical applications in a cost-effective manner. Smooth operation, the latest generation wireless/fixed detectors, and cutting-edge post-processing features help assure comprehensive performance.

Extended clinical capability

DigitalDiagnost C50 offers the versatility necessary to address a broad range of clinical applications in a cost-effective manner. Smooth operation, the latest generation wireless/fixed detectors, and cutting-edge post-processing features help assure comprehensive performance.
Click here for more information
Extended clinical capability || 1
Extended clinical capability

Extended clinical capability

DigitalDiagnost C50 offers the versatility necessary to address a broad range of clinical applications in a cost-effective manner. Smooth operation, the latest generation wireless/fixed detectors, and cutting-edge post-processing features help assure comprehensive performance.
Ease of operation || 1
Ease of operation

Ease of operation

The ceiling suspended X-ray tube moves smoothly and manually into position. The vertical stand detector slides up/down and tilts a full 900 for easy horizontal exams. With vertical auto-tracking the motorized tube automatically follows the detector.

Ease of operation

Ease of operation
The ceiling suspended X-ray tube moves smoothly and manually into position. The vertical stand detector slides up/down and tilts a full 900 for easy horizontal exams. With vertical auto-tracking the motorized tube automatically follows the detector.

Ease of operation

The ceiling suspended X-ray tube moves smoothly and manually into position. The vertical stand detector slides up/down and tilts a full 900 for easy horizontal exams. With vertical auto-tracking the motorized tube automatically follows the detector.
Click here for more information
Ease of operation || 1
Ease of operation

Ease of operation

The ceiling suspended X-ray tube moves smoothly and manually into position. The vertical stand detector slides up/down and tilts a full 900 for easy horizontal exams. With vertical auto-tracking the motorized tube automatically follows the detector.
Quality digital X-ray images || 1
Quality digital X-ray images

Quality digital X-ray images

Your choice of latest generation wireless or fixed detector is paired with built-in APRs for a high level of exposure accuracy, AEC for consistent image quality, multi-resolution image processing, and optional standard stitching capabilities, to provide you with superb image quality.

Quality digital X-ray images

Quality digital X-ray images
Your choice of latest generation wireless or fixed detector is paired with built-in APRs for a high level of exposure accuracy, AEC for consistent image quality, multi-resolution image processing, and optional standard stitching capabilities, to provide you with superb image quality.

Quality digital X-ray images

Your choice of latest generation wireless or fixed detector is paired with built-in APRs for a high level of exposure accuracy, AEC for consistent image quality, multi-resolution image processing, and optional standard stitching capabilities, to provide you with superb image quality.
Click here for more information
Quality digital X-ray images || 1
Quality digital X-ray images

Quality digital X-ray images

Your choice of latest generation wireless or fixed detector is paired with built-in APRs for a high level of exposure accuracy, AEC for consistent image quality, multi-resolution image processing, and optional standard stitching capabilities, to provide you with superb image quality.
Patient focused workflow || 1
Patient focused workflow

Patient focused workflow

The intuitive Eleva user interface and workspot require only 3 clicks to complete an exam. Images appear on the screen in just 6 seconds. Pre-programmed auto exposure parameter settings for different patient types and views speed your procedures allowing to focus on your patient.

Patient focused workflow

Patient focused workflow
The intuitive Eleva user interface and workspot require only 3 clicks to complete an exam. Images appear on the screen in just 6 seconds. Pre-programmed auto exposure parameter settings for different patient types and views speed your procedures allowing to focus on your patient.

Patient focused workflow

The intuitive Eleva user interface and workspot require only 3 clicks to complete an exam. Images appear on the screen in just 6 seconds. Pre-programmed auto exposure parameter settings for different patient types and views speed your procedures allowing to focus on your patient.
Click here for more information
Patient focused workflow || 1
Patient focused workflow

Patient focused workflow

The intuitive Eleva user interface and workspot require only 3 clicks to complete an exam. Images appear on the screen in just 6 seconds. Pre-programmed auto exposure parameter settings for different patient types and views speed your procedures allowing to focus on your patient.
Powerful post-processing || 1
Powerful post-processing

Powerful post-processing

UNIQUE image processing on the DigitalDiagnost C50 harmonises contrast and enhances faint details to ensure consistent and outstanding image quality. Image display can be easily customised to suite your individual preferences.

Powerful post-processing

Powerful post-processing
UNIQUE image processing on the DigitalDiagnost C50 harmonises contrast and enhances faint details to ensure consistent and outstanding image quality. Image display can be easily customised to suite your individual preferences.

Powerful post-processing

UNIQUE image processing on the DigitalDiagnost C50 harmonises contrast and enhances faint details to ensure consistent and outstanding image quality. Image display can be easily customised to suite your individual preferences.
Click here for more information
Powerful post-processing || 1
Powerful post-processing

Powerful post-processing

UNIQUE image processing on the DigitalDiagnost C50 harmonises contrast and enhances faint details to ensure consistent and outstanding image quality. Image display can be easily customised to suite your individual preferences.
Integrated dose management aids || 1
Integrated dose management aids

Integrated dose management aids

You can easily check X-ray dose and perform accurate dose reporting with the built-in Dose Area Product (DAP) meter1. The manual collimator helps capture the area of interest only and avoids unnecessary radiation exposure to the patient. Optional grids enhance the contrast and quality of the image.

Integrated dose management aids

Integrated dose management aids
You can easily check X-ray dose and perform accurate dose reporting with the built-in Dose Area Product (DAP) meter1. The manual collimator helps capture the area of interest only and avoids unnecessary radiation exposure to the patient. Optional grids enhance the contrast and quality of the image.

Integrated dose management aids

You can easily check X-ray dose and perform accurate dose reporting with the built-in Dose Area Product (DAP) meter1. The manual collimator helps capture the area of interest only and avoids unnecessary radiation exposure to the patient. Optional grids enhance the contrast and quality of the image.
Click here for more information
Integrated dose management aids || 1
Integrated dose management aids

Integrated dose management aids

You can easily check X-ray dose and perform accurate dose reporting with the built-in Dose Area Product (DAP) meter1. The manual collimator helps capture the area of interest only and avoids unnecessary radiation exposure to the patient. Optional grids enhance the contrast and quality of the image.
Proven reliability || 1
Proven reliability

Proven reliability

DigitalDiagnost C50 pairs performance with ease-of-ownership. You enjoy the reliability of a proven Philips brand in a ceiling system that extends your clinical capacity, delivers strong ROI, and is supported by a global services network.

Proven reliability

Proven reliability
DigitalDiagnost C50 pairs performance with ease-of-ownership. You enjoy the reliability of a proven Philips brand in a ceiling system that extends your clinical capacity, delivers strong ROI, and is supported by a global services network.

Proven reliability

DigitalDiagnost C50 pairs performance with ease-of-ownership. You enjoy the reliability of a proven Philips brand in a ceiling system that extends your clinical capacity, delivers strong ROI, and is supported by a global services network.
Click here for more information
Proven reliability || 1
Proven reliability

Proven reliability

DigitalDiagnost C50 pairs performance with ease-of-ownership. You enjoy the reliability of a proven Philips brand in a ceiling system that extends your clinical capacity, delivers strong ROI, and is supported by a global services network.

Specifications

Ceiling suspension CS
Ceiling suspension CS
Ceiling height at source image distance
  • 270 cm
Column
  • 110 cm (44”)
X-ray generation
X-ray generation
Generator
  • 50 kW
  • 65 kW
High-voltage generator
  • The converter generator generates high voltage equivalent to DC voltage
Mains voltage
  • 380V/400 V / 480 V (±10%); 50 Hz or 60 Hz, 3-phase
Max. mains resistance at 400 V
  • 0.3 Ohm
  • 0.2 Ohm
Max. mains current at 400 V
  • 112A
  • 134A
Nominal power (IEC)
  • 50 kW
  • 65 kW
Max. tube voltage
  • 150 kV
  • 150 kV
Max. tube current (at 80 kV)
  • 630 mA
  • 800 mA
mAs product
  • 0.4 mAs to 850 mAs
  • 0.4 mAs to 850 mAs
Exposure times
  • 1ms to 4s
  • 1ms to 4s
Movements
Movements
Travel range X axis(Longitudinal)
  • 3.05/4.05m (10'/13'3.4")
Travel range Y axis(Lateral)
  • 1.8m (5' 11")
Travel range Z axis(Vertical)
  • 1.5m (4' 11")
Tube High power X-ray tube
Tube High power X-ray tube
Two focal spots
  • RO1750 - 0.6 and 1.2
  • SRO 33100 - 0.6 and 1.2
Maximum power with focal spot 0.6
  • RO1750 - 21 kW
  • 3SRO 33100 - 3 kW
Maximum power with focal spot 1.2
  • RO1750 - 60 kW
  • SRO 33100 - 100 kW
Anode angle
  • RO1750 - 13°
  • SRO 33100 - 13°
Maximum tube voltage
  • RO1750 - 150 kV
  • SRO 33100 - 150 kV
Anode heat storage capacity
  • RO1750 - 220 kJ (300 kHU)
  • SRO 33100 - 220 kJ (300 kHU)
Assembly heat capacity
  • RO1750 - 1500 kJ (2202.4 kHU)
  • SRO 33100 - 1500 kJ (2202.4 kHU)
Continuous anode input power
  • RO1750 - 250 W
  • SRO 33100 - 200 W
Minimum anode speed
  • RO1750 - 3000-3600 revolutions/minute
  • SRO 33100 - 9000-10800 revolutions/minute
Collimator
Collimator
Type
  • Manual, with light field indicator
Angle of aperture and rotation
  • ±45°
Timer switch
  • 30 s (should be configurable)
Wireless portable detector
Wireless portable detector
Type
  • Digital wireless flat detector
Scintillator
  • Gadox
Detector size
  • 35 cm x 43 cm (approx 14" x 17")
Image matrix size
  • 2476 x 3072 pixels
Active Area
  • 34.1 cm x 42.4 cm (approx 13.4" x 16.7")
Pixel size
  • 139 μm
Active pixel area
  • 2456 x 3052 pixels
Detector pixels
  • 7.6 Megapixels
A/D conversion (bits)
  • 16 bits
Weight (incl. battery)
  • 3.6 kg approx. (7.93 lbs)
Eleva workspot computer
Eleva workspot computer
Hard disk
  • 500 Gb total; 203 Gb for the image data (equivalent to approximately 11548 images)
RAM storage capacity
  • 4 Gb
Fixed detector
Fixed detector
Active area
  • 42.5 cm x 42.5 cm (16.7" x 16.7")
Detector pixels
  • 8.3 Megapixel
Detector size
  • 43 cm x 43 cm (17"x 17")
Image matrix size
  • 2,869 pixel x 2,874 pixel
Image resolution
  • up to 3.4 Lp/mm
Pixel size
  • 148 μm
Type
  • Digital GOS (Gadox) flat detector
Weight
  • 2.1 kg
Ceiling suspension CS
Ceiling suspension CS
Ceiling height at source image distance
  • 270 cm
Column
  • 110 cm (44”)
X-ray generation
X-ray generation
Generator
  • 50 kW
  • 65 kW
High-voltage generator
  • The converter generator generates high voltage equivalent to DC voltage
See all specifications
Ceiling suspension CS
Ceiling suspension CS
Ceiling height at source image distance
  • 270 cm
Column
  • 110 cm (44”)
X-ray generation
X-ray generation
Generator
  • 50 kW
  • 65 kW
High-voltage generator
  • The converter generator generates high voltage equivalent to DC voltage
Mains voltage
  • 380V/400 V / 480 V (±10%); 50 Hz or 60 Hz, 3-phase
Max. mains resistance at 400 V
  • 0.3 Ohm
  • 0.2 Ohm
Max. mains current at 400 V
  • 112A
  • 134A
Nominal power (IEC)
  • 50 kW
  • 65 kW
Max. tube voltage
  • 150 kV
  • 150 kV
Max. tube current (at 80 kV)
  • 630 mA
  • 800 mA
mAs product
  • 0.4 mAs to 850 mAs
  • 0.4 mAs to 850 mAs
Exposure times
  • 1ms to 4s
  • 1ms to 4s
Movements
Movements
Travel range X axis(Longitudinal)
  • 3.05/4.05m (10'/13'3.4")
Travel range Y axis(Lateral)
  • 1.8m (5' 11")
Travel range Z axis(Vertical)
  • 1.5m (4' 11")
Tube High power X-ray tube
Tube High power X-ray tube
Two focal spots
  • RO1750 - 0.6 and 1.2
  • SRO 33100 - 0.6 and 1.2
Maximum power with focal spot 0.6
  • RO1750 - 21 kW
  • 3SRO 33100 - 3 kW
Maximum power with focal spot 1.2
  • RO1750 - 60 kW
  • SRO 33100 - 100 kW
Anode angle
  • RO1750 - 13°
  • SRO 33100 - 13°
Maximum tube voltage
  • RO1750 - 150 kV
  • SRO 33100 - 150 kV
Anode heat storage capacity
  • RO1750 - 220 kJ (300 kHU)
  • SRO 33100 - 220 kJ (300 kHU)
Assembly heat capacity
  • RO1750 - 1500 kJ (2202.4 kHU)
  • SRO 33100 - 1500 kJ (2202.4 kHU)
Continuous anode input power
  • RO1750 - 250 W
  • SRO 33100 - 200 W
Minimum anode speed
  • RO1750 - 3000-3600 revolutions/minute
  • SRO 33100 - 9000-10800 revolutions/minute
Collimator
Collimator
Type
  • Manual, with light field indicator
Angle of aperture and rotation
  • ±45°
Timer switch
  • 30 s (should be configurable)
Wireless portable detector
Wireless portable detector
Type
  • Digital wireless flat detector
Scintillator
  • Gadox
Detector size
  • 35 cm x 43 cm (approx 14" x 17")
Image matrix size
  • 2476 x 3072 pixels
Active Area
  • 34.1 cm x 42.4 cm (approx 13.4" x 16.7")
Pixel size
  • 139 μm
Active pixel area
  • 2456 x 3052 pixels
Detector pixels
  • 7.6 Megapixels
A/D conversion (bits)
  • 16 bits
Weight (incl. battery)
  • 3.6 kg approx. (7.93 lbs)
Eleva workspot computer
Eleva workspot computer
Hard disk
  • 500 Gb total; 203 Gb for the image data (equivalent to approximately 11548 images)
RAM storage capacity
  • 4 Gb
Fixed detector
Fixed detector
Active area
  • 42.5 cm x 42.5 cm (16.7" x 16.7")
Detector pixels
  • 8.3 Megapixel
Detector size
  • 43 cm x 43 cm (17"x 17")
Image matrix size
  • 2,869 pixel x 2,874 pixel
Image resolution
  • up to 3.4 Lp/mm
Pixel size
  • 148 μm
Type
  • Digital GOS (Gadox) flat detector
Weight
  • 2.1 kg
  • 1. Optional feature in China

You are about to visit a Philips global content page

You are about to visit the Philips USA website.

Our site can best be viewed with the latest version of Microsoft Edge, Google Chrome or Firefox.
