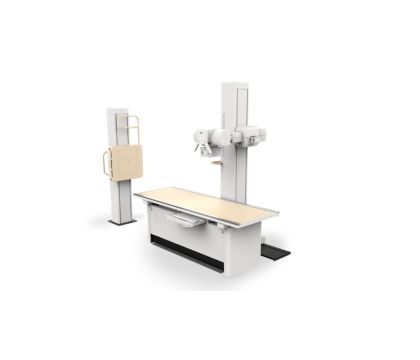

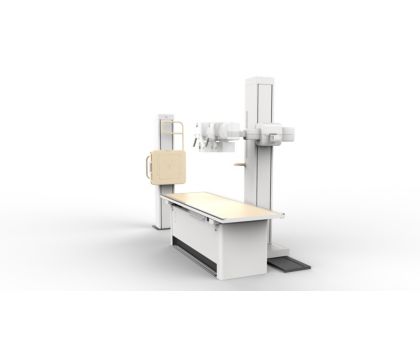

PrimaryDiagnost Cost effective radiography system

PrimaryDiagnost

Cost effective radiography system

NOCTN364

Find similar products

PrimaryDiagnost gives you access to a Philips radiography system with an excellent price/performance ratio. Capable of a wide range of exam types, it will boost your clinical confidence, help deliver fast diagnoses, and expand your medical services.

Features
Fast, accurate positioning || KBA1
Fast, accurate positioning

Fast, accurate positioning

The coupling and decoupling function enables quick and easy alignment between tube and image receptor. It allows radiographers to perform examinations very fast, saving valuable time.
Handles mixed exam types || KBA1
Handles mixed exam types

Handles mixed exam types

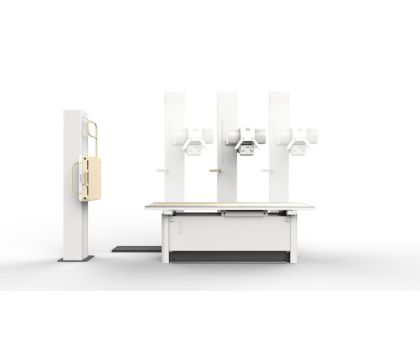

The telescopic arm allows the system to cover even more applications as it enables free exams at off‐center position. It helps radiographers carry out a variety of examinations with ease.
Harmonized user interface || KBA1
Harmonized user interface

Harmonized user interface

PrimaryDiagnost DR’s intuitive Eleva user interface is harmonized with those found on all Philips digital radiography systems. Pre‐settings and customized user profiles result in more streamlined workflow.
More efficient || KBA1
More efficient exams with one console

More efficient exams with one console

PrimaryDiagnost DR generator functionality is integrated into the Eleva workspot. The operator can select and apply exposures from the same console used for image handling to save exam time and reduce patient wait times.
Diagnostic image quality || KBA1
Consistent diagnostic image quality

Consistent diagnostic image quality

UNIQUE image processing optimizes every link of the imaging chain. It harmonizes contrast levels, highlights faint details, and adapts parameters to provide lots of detail and wide image dynamics, while still maintaining a natural, artifact‐free appearance.
Accurately exposed images || KBA1
Accurately exposed images of all regions

Accurately exposed images of all regions

Automatic exposure control (AEC) sets the exposure time according to exposure voltage and object characteristics in order to automatically obtain the correct exposure. This assists the radiographer in producing consistent images regardless of size or presence of pathology.
The essence of radiography || KBA1

The essence of radiography

Join the digital revolution with a Philips radiography product that enhances efficiency for your expanding needs, while remaining within your budgetary requirements. PrimaryDiagnost DR offers one of the best, cost-effective opportunities to enter the world of digital radiography. Digital radiography is not part of your immediate plans? Choose PrimaryDiagnost AR, the analog alternative to start with.
  • Fast, accurate positioning || KBA1
  • Handles mixed exam types || KBA1
  • Harmonized user interface || KBA1
  • More efficient || KBA1
See all features
Fast, accurate positioning || KBA1
Fast, accurate positioning

Fast, accurate positioning

The coupling and decoupling function enables quick and easy alignment between tube and image receptor. It allows radiographers to perform examinations very fast, saving valuable time.
Handles mixed exam types || KBA1
Handles mixed exam types

Handles mixed exam types

The telescopic arm allows the system to cover even more applications as it enables free exams at off‐center position. It helps radiographers carry out a variety of examinations with ease.
Harmonized user interface || KBA1
Harmonized user interface

Harmonized user interface

PrimaryDiagnost DR’s intuitive Eleva user interface is harmonized with those found on all Philips digital radiography systems. Pre‐settings and customized user profiles result in more streamlined workflow.
More efficient || KBA1
More efficient exams with one console

More efficient exams with one console

PrimaryDiagnost DR generator functionality is integrated into the Eleva workspot. The operator can select and apply exposures from the same console used for image handling to save exam time and reduce patient wait times.
Diagnostic image quality || KBA1
Consistent diagnostic image quality

Consistent diagnostic image quality

UNIQUE image processing optimizes every link of the imaging chain. It harmonizes contrast levels, highlights faint details, and adapts parameters to provide lots of detail and wide image dynamics, while still maintaining a natural, artifact‐free appearance.
Accurately exposed images || KBA1
Accurately exposed images of all regions

Accurately exposed images of all regions

Automatic exposure control (AEC) sets the exposure time according to exposure voltage and object characteristics in order to automatically obtain the correct exposure. This assists the radiographer in producing consistent images regardless of size or presence of pathology.
The essence of radiography || KBA1

The essence of radiography

Join the digital revolution with a Philips radiography product that enhances efficiency for your expanding needs, while remaining within your budgetary requirements. PrimaryDiagnost DR offers one of the best, cost-effective opportunities to enter the world of digital radiography. Digital radiography is not part of your immediate plans? Choose PrimaryDiagnost AR, the analog alternative to start with.

Specifications

X-ray tube
X-ray tube
Maximum voltage
  • 125 kV
Tube overload protection
  • Yes
Dual-focus rotating anode tube
  • Focal spots: 0.6 / 1.2
Vertical stand
Vertical stand
Vertical stand with 3 AEC chambers
  • -
Object-to-image receiver distance (AR)
  • 63 mm
Central beam minimum upper floor
  • 370 mm (AR), 360 mm (DR)
Object-to-detector distance (DR)
  • 53 mm
Vertical lift maximum
  • 1320 mm
Standard grid
  • 43 line/cm, R: 12:1, fo:1550 mm
Central beam maximum upper floor
  • 1690 mm
Generator
Generator
High-voltage generator
  • 50 kW
Automatic mains voltage compensation
  • Yes
Tube overload protection
  • Yes
Documentation of post-exposure data
  • Yes
Automatic Exposure Control
  • Standard in DR / optional in AR
Anatomically Programmed Radiography
  • Yes
Radiographic table
Radiographic table
Table height
  • 755 mm
Maximum patient weight
  • 180 kg
Tabletop dimensions
  • 2200 mm x 800 mm
Standard grid
  • 43 line/cm, R: 12:1, fo:1050 mm
Radiographic table
  • with floating tabletop and 3 AEC chambers
Tabletop travel
  • Longitudinal +/- 235 mm (center to left and right 235 mm) Transverse +/- 85 mm (center to left and right 85 mm)
Detector (DR system only)
Detector (DR system only)
Image matrix size
  • 2304 pixel x 2800 pixel
Pixel size
  • 150 µm, with a pixel depth of 14 bits
Digital tethered detector with High Stability Scinitillator
  • 35 cm x 43 cm (14" x 17")
Eleva workspot (DR system only)
Eleva workspot (DR system only)
Central operating workspot <br>for entire X-ray examination
  • Yes
Powerful computer
  • 500 GB total hard disk, 203 GB for image data
LCD color monitor
  • 19"
Storage capacity
  • 8 GB
UNIQUE
  • Instant image processing with UNIQUE image processing software
DICOM software
  • Optional
Integrated generator console
  • Yes
DICOM licenses
  • Yes

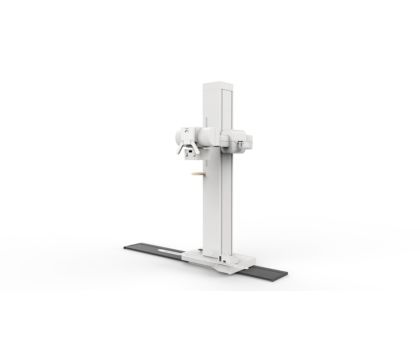

X-ray tube floor stand
X-ray tube floor stand
Rotation of tube around vertical axis
  • -90° to +90°
X-ray tube rotation
  • -120° to +120°
Longitudinal travel
  • 1800 mm
Vertical travel
  • 350 to 1890 mm
Source-image-distance
  • Max. 1200 mm for table, Max. 2500 mm for vertical stand
X-ray tube
X-ray tube
Maximum voltage
  • 125 kV
Tube overload protection
  • Yes
Vertical stand
Vertical stand
Vertical stand with 3 AEC chambers
  • -
Object-to-image receiver distance (AR)
  • 63 mm
See all specifications
X-ray tube
X-ray tube
Maximum voltage
  • 125 kV
Tube overload protection
  • Yes
Dual-focus rotating anode tube
  • Focal spots: 0.6 / 1.2
Vertical stand
Vertical stand
Vertical stand with 3 AEC chambers
  • -
Object-to-image receiver distance (AR)
  • 63 mm
Central beam minimum upper floor
  • 370 mm (AR), 360 mm (DR)
Object-to-detector distance (DR)
  • 53 mm
Vertical lift maximum
  • 1320 mm
Standard grid
  • 43 line/cm, R: 12:1, fo:1550 mm
Central beam maximum upper floor
  • 1690 mm
Generator
Generator
High-voltage generator
  • 50 kW
Automatic mains voltage compensation
  • Yes
Tube overload protection
  • Yes
Documentation of post-exposure data
  • Yes
Automatic Exposure Control
  • Standard in DR / optional in AR
Anatomically Programmed Radiography
  • Yes
Radiographic table
Radiographic table
Table height
  • 755 mm
Maximum patient weight
  • 180 kg
Tabletop dimensions
  • 2200 mm x 800 mm
Standard grid
  • 43 line/cm, R: 12:1, fo:1050 mm
Radiographic table
  • with floating tabletop and 3 AEC chambers
Tabletop travel
  • Longitudinal +/- 235 mm (center to left and right 235 mm) Transverse +/- 85 mm (center to left and right 85 mm)
Detector (DR system only)
Detector (DR system only)
Image matrix size
  • 2304 pixel x 2800 pixel
Pixel size
  • 150 µm, with a pixel depth of 14 bits
Digital tethered detector with High Stability Scinitillator
  • 35 cm x 43 cm (14" x 17")
Eleva workspot (DR system only)
Eleva workspot (DR system only)
Central operating workspot <br>for entire X-ray examination
  • Yes
Powerful computer
  • 500 GB total hard disk, 203 GB for image data
LCD color monitor
  • 19"
Storage capacity
  • 8 GB
UNIQUE
  • Instant image processing with UNIQUE image processing software
DICOM software
  • Optional
Integrated generator console
  • Yes
DICOM licenses
  • Yes
X-ray tube floor stand
X-ray tube floor stand
Rotation of tube around vertical axis
  • -90° to +90°
X-ray tube rotation
  • -120° to +120°
Longitudinal travel
  • 1800 mm
Vertical travel
  • 350 to 1890 mm
Source-image-distance
  • Max. 1200 mm for table, Max. 2500 mm for vertical stand
