Other items in the box
- Tabletop stand
- Remote Control
- Power cord
- User Manual

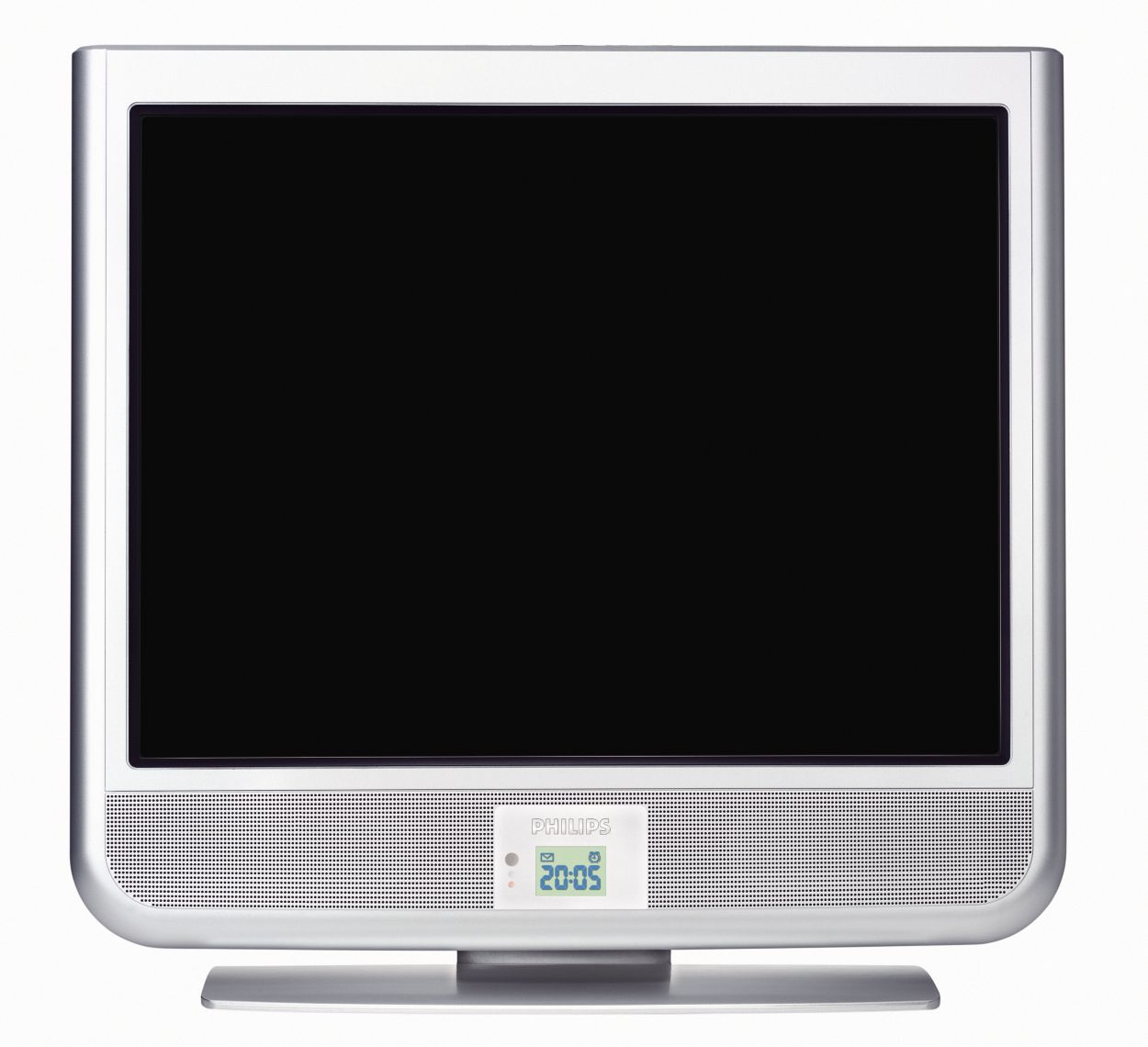

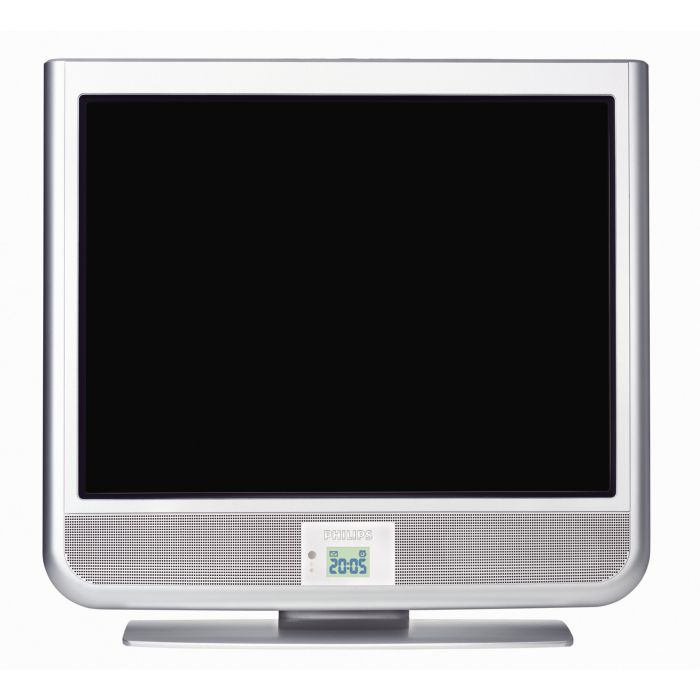

professional flat TV
20HF7462/12
System Prepared Flat TV
Stylish compact design with an integrated LCD (alarm) clock. Equipped with advanced hotel mode and compatible with the future-proof optional Smartcard Xpress expansion unit, allowing third-party interactive solutions.
See all benefitsUnfortunately this product is no longer available
This product qualifies for VAT relief
If you're eligible for VAT relief on medical devices, you can claim it on this product. The VAT amount will be deducted from the price shown above. Look for full details in your shopping basket.
Similar products
See all UnmappedMake it a bundle and save Make it a bundle and get 1 item for free
Bundle price
Choose one of the following: Choose one of the following products:
Add accessories
This product
- {discount-value}
professional flat TV
total
recurring payment
Integrated clock display with wake-up and message alarm
The built-in clock display, which is also a wake-up alarm, eliminates the need for investment in an additional clock with cables and connections in the room. Automatic time synchronisation via teletext and preservation of alarm settings during short power outages further enhances guest comfort
Wireless SmartLoader for fast cloning
Provides the ability to copy all programming settings from one TV set to other TV sets easily and wirelessly in less then a minute. The feature ensures uniformity between TV sets and significantly reduces installation time and costs.
Welcome message on screen display
A welcome greeting is displayed each time the TV set is switched on.
Volume limitation
This feature predefines the volume range within which the TV set is allowed to operate, preventing excessive volume adjustments and disturbance of neighbouring guests.
Front Controls Locking
Prevents unauthorised access to TV functions
Switch On Channel Programming
Perfect for in-house advertising or information channels as it allows a predefined channel to be shown when the TV is turned on.
Security Menu Access
Provides conditional access to installation and configuration settings via a special code or master remote control
Built-in FM radio
The integrated FM radio offers guests additional comfort without the extra investment in radio receivers.
SmartCard Xpress Box compatible for interactive systems
The optional SmartCard Xpress Box can be mounted at the back of the TV set and allows third-party decoders and application cards to interface with the TV, adding new functionality to the TV. The TV can also be connected to external decoders and set-top boxes of all major interactive system providers through the Serial Xpress Control Interface (supporting UART and RS232 protocols) and the SmartPlug Control interface.
Additional integrated power supply
The additional integrated power supply avoids the need for a separate power supply for an interactive system. For stand-alone use, the additional power supply can be switched off to save energy.
Serial Xpress™ Control interface
The Serial Xpress™ Control interface is compatible with all major premium entertainment services. The protocols enable the TV to be connected with external decoders, set-top boxes and PC based solutions. Supports UART and RS232 protocols.
Future proof by software upgradability
The upgradable software architecture ensures that the TV is future proof and compatible with new technologies and developments, securing your investment.
Crystal Clear III for natural images with enhanced quality
Crystal Clear III combines a whole range of enhancements to provide a better picture. They include a 2D Comb filter, Dynamic contrast, Blue stretch and Green enhancement so that you always get the most natural looking colours.
Enhanced-definition LCD VGA display, 640 x 480p
This VGA display with state-of-the-art LCD screen technology has an enhanced resolution of 640 x 480p.
2D Combfilter sharpens images for finer detail
The 2D combfilter separates chrominance (colour) from luminance (brightness) information in the video signal for independent processing to improve picture resolution and minimise distortion.
Technical Specifications
-
Picture/Display
- Aspect ratio
- 4:3
- Diagonal screen size (inch)
- 20 inch
- Diagonal screen size (metric)
- 51 cm
- Panel resolution
- 640 x 480p
- Brightness
- 450 cd/m²
- Contrast ratio (typical)
- 350:1
- Picture enhancement
-
- Progressive scan
- 2D Combfilter
- Sharpness Adjustment
- Active Control
- Digital Noise Reduction
- Crystal Clear III
- Colour Transient Improvement
-
- Display screen type
- LCD VGA Active Matrix TFT
- Response time (typical)
- 25 ms
- Viewing angle (horizontal)
- 176 degree
- Viewing angle (vertical)
- 176 degree
- Screen enhancement
- Anti-Reflection coated screen
-
Tuner/Reception/Transmission
- Aerial Input
- 75 ohm coaxial (IEC75)
- Tuner bands
-
- Hyperband
- S-Channel
- UHF
- VHF
- FM
-
- TV system
-
- PAL B/G
- PAL D/K
- PAL I
- SECAM B/G
- SECAM D/K
- SECAM L/L'
-
- Number of Pre-set Channels
- 127
- Video Playback
-
- NTSC
- PAL
- SECAM
-
- Tuner Display
- PLL
-
Convenience
- Ease of Installation
-
- Fine Tuning
- PLL Digital Tuning
- Programme Name
-
- Ease of Use
-
- Auto Volume Leveller (AVL)
- Smart Picture
- Smart Sound
- FM Radio
- On-Screen Display
-
- Clock
-
- Sleep Timer
- Wake-up Clock
-
- Remote Control
- TV
- Remote control type
- RC2886
- Teletext
- 10-page Smart Text
- VESA Mount
- 100 x 100 mm
- Teletext enhancements
- 4 favourite pages
-
Sound
- Output power (RMS)
- 2 x 5 W
- Sound System
- Nicam Stereo
- Sound Enhancement
- Smart Sound
- Music Power
- 20 W
-
Loudspeakers
- Built-in speakers
- 2
-
Connectivity
- Connectivity Enhancements
-
- RJ12 connector
- RJ45 connector
-
- Front/Side connections
-
- Headphones Out
- S-video in
- CVBS in
-
- Ext 1 Scart
-
- Audio L/R
- CVBS in/out
- RGB
-
- Other connections
-
- Antenna IEC75
- FM Antenna
-
-
Power
- Mains power
- AC 90 V–240 V 50/60 Hz
- Ambient temperature
- 5°C to 40°C
- Power consumption
- 55 W
- Standby power consumption
- < 3 W
-
Accessories
- Included accessories
-
- Tabletop stand
- Remote Control
- Power cord
- User Manual
-
-
Dimensions
- Product weight
- 8 kg
- Weight incl. Packaging
- 10 kg
- Bezel colour
- Silver Frost
- Product dimensions (WxDxH)
- 477 x 435 x 86
- Outer carton dimensions WxDxH
- 580 x 528 x 185
- Height (with base)
- 461 mm
- Depth (with base)
- 217 mm
