Other items in the box
- Tabletop stand
- DVI-D cable
- VGA cable
- Remote Control
- Battery
- AC Power Cord
- Optional accessories: Ceiling mount
- Optional accessories: Fixed wall mount
- Optional accessories: Flexible wall mount

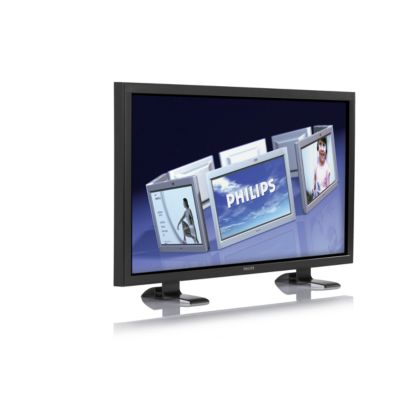

plasma monitor
BDH5021V/00
High Resolution Public Display
State-of-the-art plasma monitor designed for boardroom and indoor venue display applications. The high-class scaler, advanced digital video processing and latest plasma technology guarantee optimal display of (HD) video, text or graphics.
Unfortunately this product is no longer available
This product qualifies for VAT relief
If you're eligible for VAT relief on medical devices, you can claim it on this product. The VAT amount will be deducted from the price shown above. Look for full details in your shopping basket.
Similar products
See all UnmappedMake it a bundle and save Make it a bundle and get 1 item for free
Bundle price
Choose one of the following: Choose one of the following products:
Add accessories
This product
- {discount-value}
plasma monitor
total
recurring payment
HD ready for the highest quality display of HDTV signals
Enjoy the exceptional picture quality of a High Definition TV signal and be fully prepared for HD sources like HDTV broadcast, Blu-ray DVD or HDVD. HD ready is a protected label that offers picture quality beyond that of progressive scan. It conforms to strict standards laid out by EICTA to offer an HD screen that displays the benefits of resolution and picture quality of a High Definition TV signal. It has a universal connection for both analogue YPbPr and uncompressed Digital connection of DVI or HDMI, supporting HDCP. It can display 720p and 1080i signals at 50 and 60 Hz.
High Definition plasma WXGA display, 1366 x 768p
This state-of-the-art plasma screen technology gives you widescreen HD resolution of up to 1366 x 768p pixels. It produces brilliant flicker-free progressive scan pictures in with optimum brightness and superb colours. This vibrant and sharp image will provide you with an enhanced viewing experience.
Motion compensated deinterlacing
Motion compensated deinterlacing employs a smart deinterlacing algorithm that uses the images in a digital memory to measure and estimate the motion speed and direction of objects to create new fields with corrected motion positions so video content has perfectly smooth, judder-free and razor-sharp moving images.
3:2 Pulldown eliminates artefacts when watching movies
3:2 Pulldown totally eliminates the unwanted artefacts that distort your picture viewing when watching movies. With these artefacts gone, you will enjoy the movie the way it is meant to be.
3D combfilter separates colours for a razor-sharp image
The 3D combfilter separates brightness and colour signals better in 3D domain to eliminate cross-colour, cross-luminance and dot-crawl distortion - all of which detract from your viewing pleasure. The 3D digital combfilter performs field-by-field comparisons of the television image to accurately separate the colour from the black-and-white information and remove both horizontally and vertically hanging dots, as well as dot crawl. The result is a razor sharp image.
Monitor is network controllable for remote management
Network controllability allows user to control and adjust monitors remotely through RS232 protocol.
Multiple PC input formats up to WXGA
The product supports PC compatibility for VGA, SVGA, XGA and WXGA. A universal public display solution requires versatile PC input support.
Multiple video input formats up to SXGA and HDTV compatible
In common use video content is often supplied in various formats in different resolutions and aspect ratios. Thus the content needs to be reformatted for optimal display on given screen resolution. A high-class scaler guarantees optimal reformatting of any video format up to SXGA.
Quiet and reliable fanless operation
Fanless operation is quiet and doesn't collect dust inside the monitor, thus improving product reliability.
Long expected panel lifetime of over 60,000 hours
In public display applications 24/7 operation is often required. Even after 60,000 hours of operation the brightness level of the display will be at least 50% of the initial value.
Advanced anti burn-in functions to prevent ghost images
A protective function called "pixel shift" has been implemented. When the protection mechanism is activated the screen image automatically shifts its pixel positions to prevent "image ghosting". Secondly, burn-in recovery has been implemented. Depending on the model, ghost images are removed by applying a full white signal on the whole panel for a certain amount of time or by reversing the image to achieve the same result.
DVI cable included to provide highest picture quality
A DVI cable is standard included with the display to provide the highest possible picture quality.
Technical Specifications
-
Picture/Display
- Panel Size
- 50"/127cm
- Aspect ratio
- 16:9
- Panel resolution
- 1366 x 768p
- Pixel pitch
- 0.81 x 0.81 mm
- Brightness
- 1000 cd/m²
- Display colours
- 16.7 million colours
- Contrast ratio (typical)
- 8000:1
- Viewing angle (horizontal)
- >160 degree
- Viewing angle (vertical)
- >160 degree
- Picture enhancement
-
- 3/2 - 2/2 motion pull down
- 3D Combfilter
- Motion compens. deinterlacing
- Progressive scan
-
- Horizontal Scanning Frequency
- 30–80 kHz
- Vertical Scanning Frequency
- 50–85 Hz
- Effective viewing area
- 1107 x 622mm
- Display screen type
- WXGA Plasma panel
-
Connectivity
- Audio output
- Speaker output 2 x 6.3 mm jack
- PC
-
- DVI-D with HDCP
- RS232 D-Sub9
- VGA-in D-Sub 15HD
-
- AV input
-
- Component (YPbPr) x 1
- Audio (L/R) for YPbPr x 1
- Composite (CVBS) x 1
- Audio (L/R) x 1
- S-video x 1
- Scart 2 x
-
- AV output
-
- Composite (CVBS) x 1
- Audio (L/R) x 1
-
- Audio input for PC
- Audio Left/Right (RCA 2 x)
- Audio input for DVI
- Audio Left/Right (RCA 2 x)
-
Convenience
- Placement
-
- Portrait
- Landscape
-
- Built-in Audio
- Built-in amplifier and 10 W RMS x 2 stereo speakers
- Screen-saving functions
- Pixel shift
- User convenience
- On-screen Display
- Monitor Controls
-
- Left/Right
- Menu (OK)
- Power On/Off
- Source Select
- Up/Down
- Volume control
-
- Regulatory approvals
-
- CE Mark
- RoHS
-
- OSD Languages
-
- English
- French
- German
- Italian
- Spanish
- Dutch
-
- Network controllable
- RS232
- Teletext
- 1000-page Smart Text
-
Power
- Power supply
- 100-240 VAC, 50/60 Hz
- Consumption (On mode)
- 390W (typical)
- Sleep Mode
- 5W Max.
-
Supported Display Resolution
- Computer formats
-
- 640 x 480, 60, 72, 75 Hz
- 800 x 600, 60, 72, 75 Hz
- 848 x 480, 60 Hz
- 1024 x 768, 60, 70, 75 Hz
- 1280 x 1024, 60 Hz
- 1366 x 768, 60 Hz
-
- Video formats
-
- 480i, 60 Hz
- 480p, 60 Hz
- 576p, 50 Hz
- 576i, 50 Hz
- 720p, 50, 60 Hz
- 1080i, 50, 60 Hz
-
-
Dimensions
- Lifetime to 50% brightness
- 60000 hour(s)
- Product weight
- 45 kg
- Set Width (inch)
- 47.441 inch
- Temperature range (operation)
- +32°F to +104°F
- Set Height (inch)
- 28.386 inch
- Temperature range (storage)
- -4°F to 140°F
- Set Depth (inch)
- 4.5 inch
- Product weight (lb)
- 99.208 lb
- Relative humidity
- 20% - 80%
- Depth (without base)
- 114.3 mm
- Width (without base)
- 1205 mm
- Height (without base)
- 721 mm
- Temperature (operation)
- 0ºC to +40ºC
- Temperature (storage)
- -20ºC to +60ºC
-
Accessories
- Included accessories
-
- Tabletop stand
- DVI-D cable
- VGA cable
- Remote Control
- Battery
- AC Power Cord
-
- User Manual
- English, German, French, Spanish, Italian
- Optional accessories
-
- Ceiling mount
- Fixed wall mount
- Flexible wall mount
-
- User Guide on CD-ROM
- (RS232 protocol included)
-
Miscellaneous
- Bezel
- Metallic Anthracite
