Other items in the box
- Tabletop stand
- DVI-D cable
- VGA cable
- Remote Control
- Battery
- AC Power Cord
- Optional accessories: Ceiling mount
- Optional accessories: Fixed wall mount
- Optional accessories: Flexible wall mount

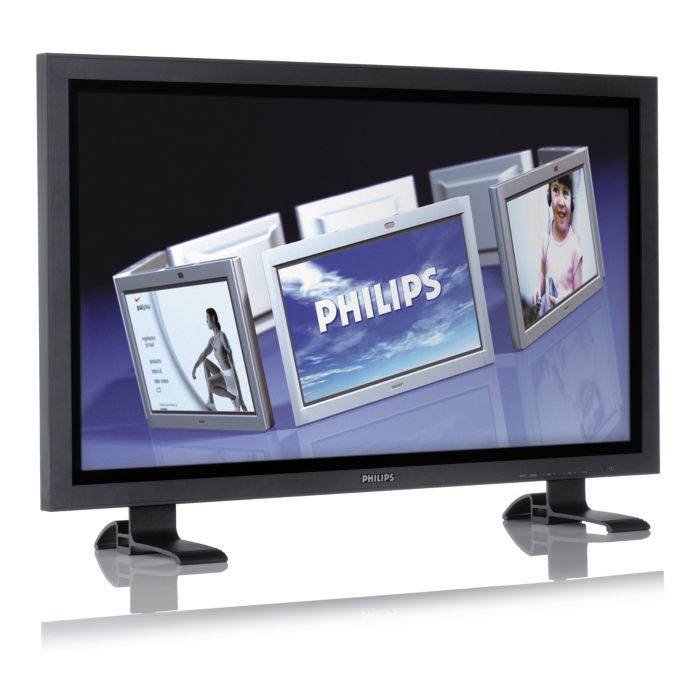

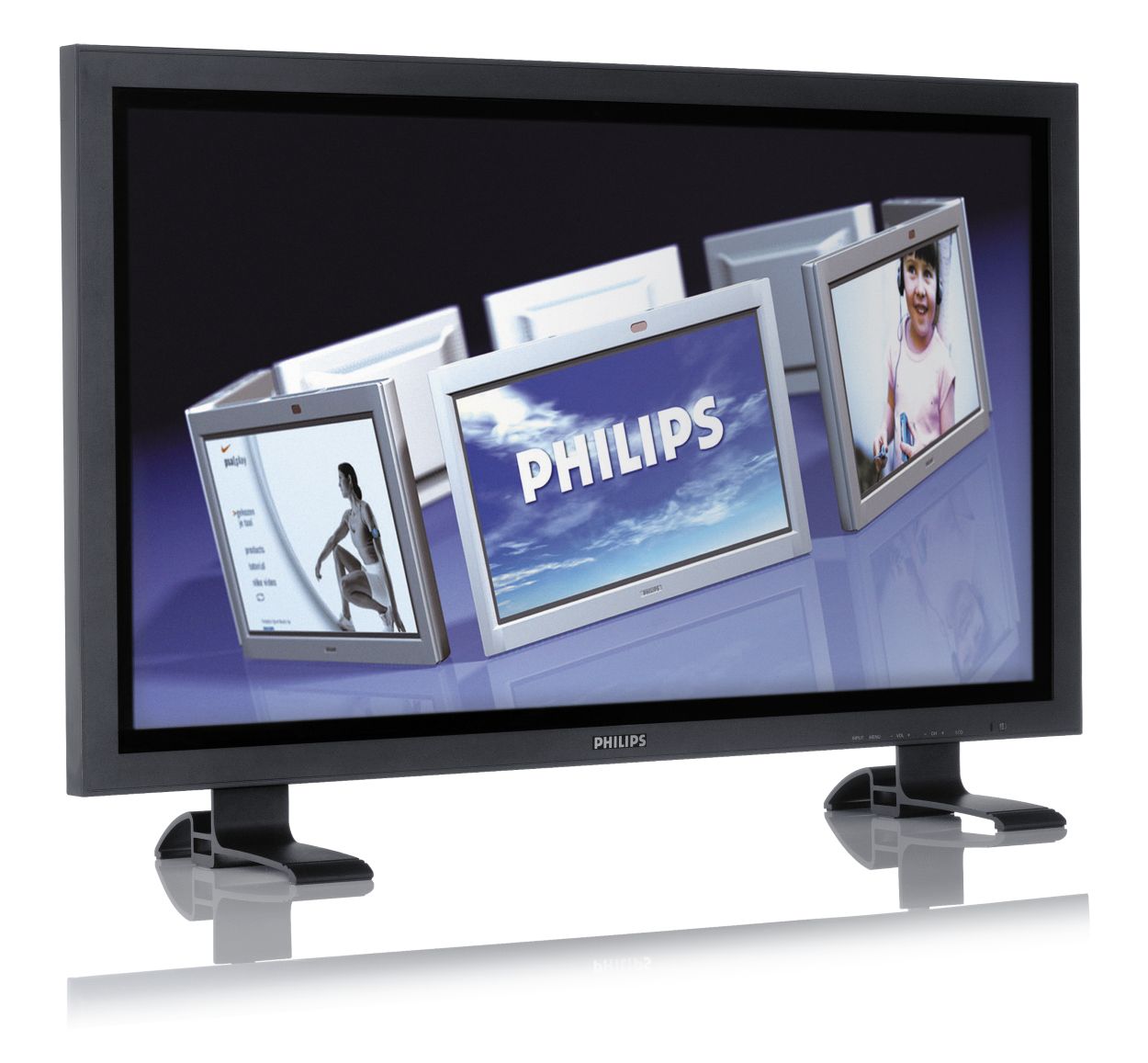

plasma monitor
BDS4241R/00
Multi-Purpose Public Display Solution
State of the art, cost effective plasma monitor designed for indoor public display applications. The high class deinterlacer, advanced digital video processing and the latest plasma technology guarantee optimal display of your message.
See all benefitsUnfortunately this product is no longer available
This product qualifies for VAT relief
If you're eligible for VAT relief on medical devices, you can claim it on this product. The VAT amount will be deducted from the price shown above. Look for full details in your shopping basket.
Similar products
See all UnmappedMake it a bundle and save Make it a bundle and get 1 item for free
Bundle price
Choose one of the following: Choose one of the following products:
Add accessories
This product
- {discount-value}
plasma monitor
total
recurring payment
Extensive accessory package
This display is equipped as standard with an accessory package that includes a remote control, user manual, DVI and VGA cables, a table top stand (feet) and (detachable) speakers.
Advanced anti burn-in functions to prevent ghost images
A protective function called "pixel shift" has been implemented. When the protection mechanism is activated the screen image automatically shifts its pixel positions to prevent "image ghosting". Secondly, burn-in recovery has been implemented. Depending on the model, ghost images are removed by applying a full white signal on the whole panel for a certain amount of time or by reversing the image to achieve the same result.
Motion compensated deinterlacing
Motion compensated deinterlacing employs a smart deinterlacing algorithm that uses the images in a digital memory to measure and estimate the motion speed and direction of objects to create new fields with corrected motion positions so video content has perfectly smooth, judder-free and razor-sharp moving images.
Extremely high contrast (10000:1) and brightness (1500 cd/m²)
High brightness and contrast values are extremely beneficial in public environments where lighting conditions are variable and often beyond control.
3D combfilter separates colours for a razor-sharp image
The 3D combfilter separates brightness and colour signals better in 3D domain to eliminate cross-colour, cross-luminance and dot-crawl distortion - all of which detract from your viewing pleasure. The 3D digital combfilter performs field-by-field comparisons of the television image to accurately separate the colour from the black-and-white information and remove both horizontally and vertically hanging dots, as well as dot crawl. The result is a razor sharp image.
Monitor is network controllable for remote management
Network controllability allows user to control and adjust monitors remotely through RS232 protocol.
Built-in TV tuner
Some applications need more than PC inputs. The RF tuner for television signal reception and the video connectors, including s-video, scart and component video, offer a wide choice of input possibilities for multiple devices.
Multiple PC input formats up to WXGA
The product supports PC compatibility for VGA, SVGA, XGA and WXGA. A universal public display solution requires versatile PC input support.
Multiple video input formats up to SXGA and HDTV compatible
In common use video content is often supplied in various formats in different resolutions and aspect ratios. Thus the content needs to be reformatted for optimal display on given screen resolution. A high-class scaler guarantees optimal reformatting of any video format up to SXGA.
Long expected panel lifetime of over 60,000 hours
In public display applications 24/7 operation is often required. Even after 60,000 hours of operation the brightness level of the display will be at least 50% of the initial value.
Quiet and reliable fanless operation
Fanless operation is quiet and doesn't collect dust inside the monitor, thus improving product reliability.
Technical Specifications
-
Picture/Display
- Panel Size
- 42"/106.7 cm
- Aspect ratio
- 16:9
- Panel resolution
- 852 x 480p
- Pixel pitch
- 1.08 x 1.08 mm
- Brightness
- 1500 cd/m²
- Display colours
- 16.7 million colours
- Contrast ratio (typical)
- 10000:1
- Viewing angle (horizontal)
- >160 degree
- Viewing angle (vertical)
- >160 degree
- Picture enhancement
-
- 3/2 - 2/2 motion pull down
- 3D Combfilter
- Motion compens. deinterlacing
- Progressive scan
-
- Horizontal Scanning Frequency
- 30–80 kHz
- Vertical Scanning Frequency
- 50–85 Hz
- Effective viewing area
- 920 x 518 mm
- Display screen type
- WVGA Plasma panel
-
Connectivity
- Audio output
- Speaker output 2 x 6.3 mm jack
- PC
-
- DVI-D x 1
- RS232 D-Sub9
- VGA-in D-Sub 15HD
-
- AV input
-
- Component (YPbPr) x 1
- Audio (L/R) for YPbPr x 1
- Composite (CVBS) x 1
- Audio (L/R) x 1
- S-video x 1
- Scart 2 x
-
- AV output
-
- Composite (CVBS) x 1
- Audio (L/R) x 1
-
- Other connections
- Antenna IEC75
- Audio input for PC
- Audio Left/Right (RCA 2 x)
- Audio input for DVI
- Audio Left/Right (RCA 2 x)
-
Convenience
- Placement
-
- Portrait
- Landscape
-
- Built-in Audio
- Built-in amplifier and 10 W RMS x 2 stereo speakers
- Screen-saving functions
- Pixel shift
- User convenience
- On-screen Display
- Monitor Controls
-
- Left/Right
- Menu (OK)
- Power On/Off
- Source Select
- Up/Down
- Volume control
-
- Regulatory approvals
-
- CE Mark
- RoHS
-
- OSD Languages
-
- English
- French
- German
- Italian
- Spanish
- Dutch
-
- Network controllable
- RS232
- Teletext
- 1000-page Smart Text
-
Power
- Power supply
- 100-240 VAC, 50/60 Hz
- Consumption (On mode)
- 240 Watts (typical)
- Sleep Mode
- 5W Max.
-
Supported Display Resolution
- Computer formats
-
- 640 x 480, 60, 72, 75 Hz
- 800 x 600, 60, 72, 75 Hz
- 848 x 480, 60 Hz
- 1024 x 768, 60, 70, 75 Hz
- 1280 x 1024, 60 Hz
-
- Video formats
-
- 480i, 60 Hz
- 480p, 60 Hz
- 576p, 50 Hz
- 576i, 50 Hz
- 720p, 50, 60 Hz
- 1080i, 50, 60 Hz
-
-
Dimensions
- Lifetime to 50% brightness
- 60000 hour(s)
- Product weight
- 29 kg
- Set Width (inch)
- 40.472 inch
- Temperature range (operation)
- +32°F to +104°F
- Set Height (inch)
- 24.606 inch
- Temperature range (storage)
- -4°F to 140°F
- Set Depth (inch)
- 3.535 inch
- Product weight (lb)
- 63.934 lb
- Relative humidity
- 20% - 80%
- Depth (without base)
- 89.8 mm
- Width (without base)
- 1028 mm
- Height (without base)
- 625 mm
- Temperature (operation)
- 0ºC to +40ºC
- Temperature (storage)
- -20ºC to +60ºC
-
Tuner/Reception/Transmission
- Tuner bands
-
- Hyperband
- S-Channel
- UHF
- VHF
-
- TV system
-
- PAL
- SECAM
-
- Video Playback
-
- NTSC
- PAL
- SECAM
-
-
Accessories
- Included accessories
-
- Tabletop stand
- DVI-D cable
- VGA cable
- Remote Control
- Battery
- AC Power Cord
-
- User Manual
- English, German, French, Spanish, Italian
- Optional accessories
-
- Ceiling mount
- Fixed wall mount
- Flexible wall mount
-
- User Guide on CD-ROM
- (RS232 protocol included)
