Other items in the box
- Remote Control
- Batteries for remote control
- AC Power Cord
- VGA cable
- User manual on CD-ROM
- Owner's Manual
- Touch Driver on USB
- Optional accessories: Multi User Touch SW
- Optional accessories: Software Omnitapps BMT1909/00

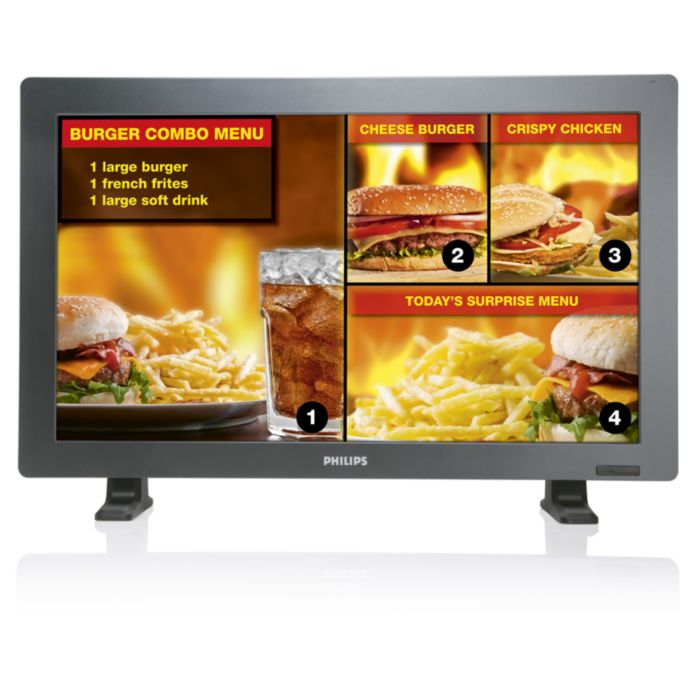

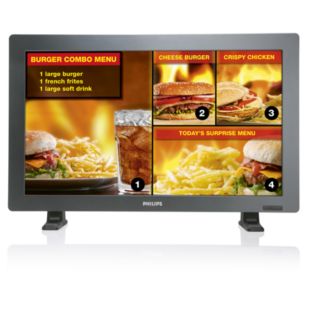

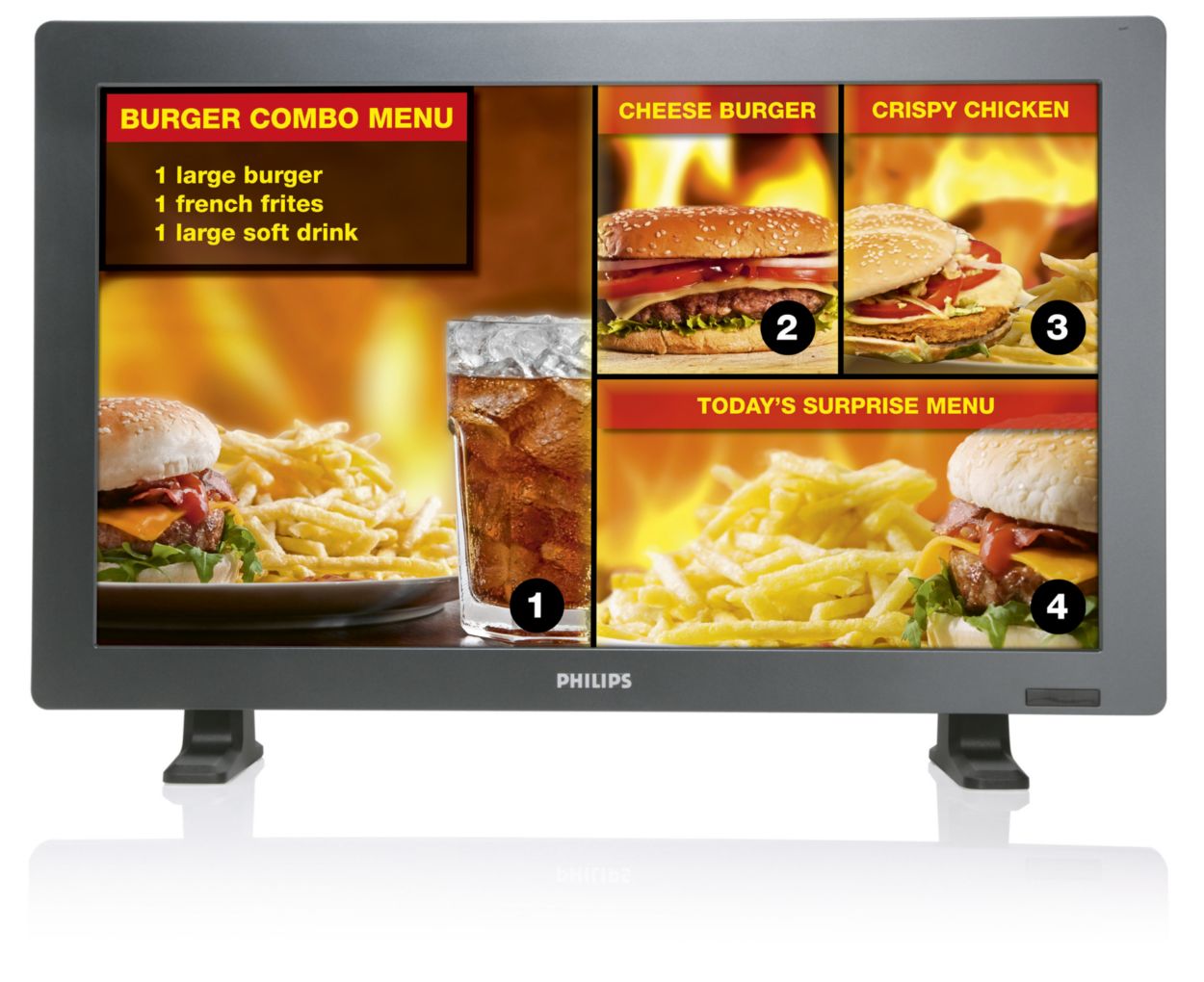

LCD Touch Information Kiosk
BDT4225EK/06
More audience interaction
Deliver vital information or marketing messages to your audience in startling clarity. And thanks to the interactive touch screen, you can also engage your customer much more closely than ever before.
See all benefitsUnfortunately this product is no longer available
This product qualifies for VAT relief
If you're eligible for VAT relief on medical devices, you can claim it on this product. The VAT amount will be deducted from the price shown above. Look for full details in your shopping basket.
Similar products
See all UnmappedMake it a bundle and save Make it a bundle and get 1 item for free
Bundle price
Choose one of the following: Choose one of the following products:
Add accessories
This product
- {discount-value}
LCD Touch Information Kiosk
total
recurring payment
True multi-touch with 6 simultaneous touch points
Enjoy a more interactive experience with up to 6 touch points at the same time. Ideal for when you have more than one user interacting with your application simultaneously, the 6 touch points offer an extremely cost-effective solution.
Complies with RoHS standards of care for the environment
Philips designs and produces display products in compliance with strict Restriction of Hazardous Substances (RoHS) standards that restrict lead and other toxic substances that can harm the environment.
HDMI input
HDMI makes an uncompressed digital RGB connection from the source to the screen. By eliminating conversion to an analogue signal, it delivers an unblemished image. The non-degraded signal reduces flicker and leads to a clearer picture. HDMI intelligently communicates the highest output resolution with the source device. The HDMI input is fully backwards-compatible with DVI sources but includes digital audio. HDMI uses HDCP copy protection.
Kiosk height and angle for ergonomic use
The Multi-user Touch screen of this kiosk is placed at a 45-degree angle for ergonomic use. The column is lockable and has space for a powerful PC.
Infrared Touch
With an invisible infrared grid on the top of the screen, you can enjoy amazing accuracy and fast response times, even when the screen is touched by a finger, glove or stylus. And no "ghost points".
SmartPower for energy saving
The backlight intensity can be controlled and pre-set by the system to reduce the power consumption by up to 50%, which saves substantially on energy costs.
Software Independent
Our touch screens are software independent and work with most touch-screen software commercially available, including Windows XP/7 and Mac OS, Omnitapps – BMT1909/00. Connect via USB to a PC or laptop.
Technical Specifications
-
Picture/Display
- Diagonal screen size
- 42 inch / 107 cm
- Aspect ratio
- 16:9
- Panel resolution
- 1920 x 1080p
- Pixel pitch
- 0.485 x 0.485
- Optimum resolution
- 1920 x 1080 @ 60 Hz
- Brightness
- 500 cd/m²
- Display colours
- 1.06 Billion colours
- Contrast ratio (typical)
- 1400:1
- Response time (typical)
- 5 ms
- Viewing angle
- 178º (H)/178º (V)
- Picture enhancement
-
- 3/2 - 2/2 motion pull down
- 3D Combfilter
- Motion compens. deinterlacing
- Progressive scan
- 3D MA deinterlacing
- Dynamic contrast enhancement
-
-
Connectivity
- PC
-
- VGA-in D-Sub 15HD
- VGA-out D-Sub 15HD
- DVI-D x 1
- RS232 D-Sub9
- RS232 D-sub9 output
- 3.5 mm PC audio input x 1
-
- AV input
-
- HDMI x 1
- Component (BNC) x 1
- Composite (RCA) x 1
- Composite (BNC) x 1
- S-video x 1
- Audio (L/R) x 2
-
- AV output
-
- Composite (BNC) x 1
- Audio (L/R) x 1
-
-
Convenience
- Placement
- Landscape
- Picture in picture
-
- PBP
- PIP
- POP
-
- Screen-saving functions
- Pixel shift, Low brightness
- Keyboard control
-
- Hidden
- Lockable
-
- Remote control signal
- Lockable
- Energy-saving functions
- Smart Power
- Picture performance
- Advanced colour control
-
Sound
- Built-in speakers
- 2 x 7 W (8 Ohm)
-
Power
- Mains power
- 90-264 VAC, 50/60 Hz
- Consumption (On mode)
- Typical 135 W
- Standby power consumption
- < 1 W
-
Supported Display Resolution
- Computer formats
-
- 640 x 480, 60, 67, 72, 75 Hz
- 800 x 600, 56, 60, 72, 75 Hz
- 1024 x 768, 60 Hz
- 1280 x 768, 60 Hz
- 1280 x 800, 60 Hz
- 1280 x 1024, 60 Hz
- 1360 x 768, 60 Hz
- 1366 x 768, 60 Hz
- 1440 x 900, 60 Hz
- 1600 x 1200, 60 Hz
- 1920 x 1080, 60 Hz
- 1920 x 1200, 60 Hz
-
- Video formats
-
- 480i, 60 Hz
- 480p, 60 Hz
- 576i, 50 Hz
- 576p, 50 Hz
- 720p, 50, 60 Hz
- 1080i, 50, 60 Hz
- 1080p, 50, 60 Hz
-
-
Dimensions
- Bezel thickness
- 44.5 mm vertical, 46 mm horizontal
- Set dimensions (W x H x D)
- 1024 x 1380 x 560 mm
- Product weight
- 98 kg
-
Operating conditions
- Temperature range (operation)
- 0 - 40 °C
- MTBF
- 50,000 hour(s)
- Relative humidity
- 5 - 90 %
-
Accessories
- Included accessories
-
- Remote Control
- Batteries for remote control
- AC Power Cord
- VGA cable
- User manual on CD-ROM
- Owner's Manual
- Touch Driver on USB
-
- Optional accessories
-
- Multi User Touch SW
- Software Omnitapps BMT1909/00
-
-
Miscellaneous
- Bezel
- black, RAL 9005F13
- On-Screen Display Languages
-
- English
- French
- German
- Italian
- Polish
- Turkish
- Russian
- Simplified Chinese
-
- Warranty
- Europe 2 years
- Regulatory approvals
-
- CCC
- CE
- FCC, Class B
- RoHS
- UL/cUL
-
-
Packaging Data
- Packaging dimensions (W x H x D):
- 1 x Euro pallet, 1200 x 1530 x 800 mm
- Tare weight
- 20 kg
- Number of products included
- 1
-
Interactivity
- Multi-touch technology
-
- 6 Touch points simultaneously
- Infrared touch
- USB connection
- 4-mm safety glass
-
