Other items in the box
- Mains cord
- Batteries
- Remote Control
- Quick start guide
- User manual
- HDMI cable

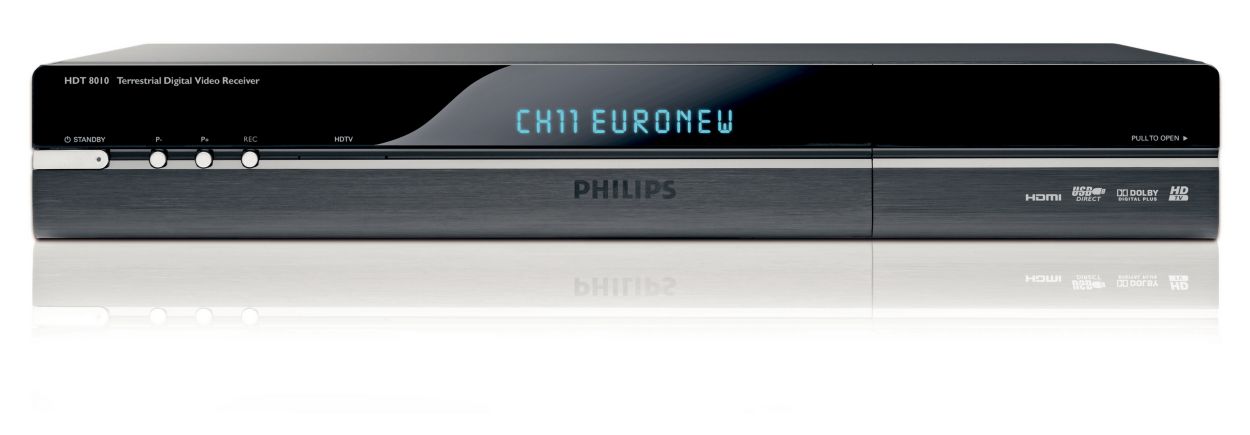

Digital Terrestrial Recorder
HDT8010/12
- -{discount-value}
Digital Terrestrial Recorder
HDT8010/12Simplicity in recording and watching 2 HDTV channels
Unfortunately this product is no longer available
This product qualifies for VAT relief
If you're eligible for VAT relief on medical devices, you can claim it on this product. The VAT amount will be deducted from the price shown above. Look for full details in your shopping basket.
Simplicity in recording and watching 2 HDTV channels
Similar products
See all TerrestrialMake it a bundle and save Make it a bundle and get 1 item for free
Bundle price
Choose one of the following: Choose one of the following products:
Add accessories
Digital Terrestrial Recorder
- {discount-value}
Total:
recurring payment
HDMI out for digital high-definition video and digital audio
HDMI is a direct digital connection that can carry digital HD video as well as digital multi-channel audio. By eliminating the conversion to analogue signals it delivers perfect picture and sound quality, completely free from noise. HDMI is fully backwards-compatible with DVI.
Low power consumption for environmentally-friendly living
You want to play a part in protecting the environment by reducing energy consumption, while paying less for your electricity bills. The product is able to switch into low power consumption of < 2 W when you switch off the product.
Record 35 hrs of HD TV programmes on a 160 GB hard disk
The hard disk allows you to record your High Definition (HD) TV programmes, and it also allows you to pause the watching of a programme should you be interrupted. You can now plan in advance to record any programmes you may miss, without having to hook up any other devices. A 160 GB hard disk is a storage drive that can record approximately 35 hours of High Definition TV programmes or 70 hours of Standard Definition TV programmes.
Receive High Definition TV programmes
Increasingly, television programs are being broadcast in High Definition, signals which only an HD tuner is capable of receiving. Compared with standard definition content, which is typically at 720 x 576 pixel resolution, High Definition programmes bring you a higher picture quality of up to 1920 x 1080 pixels, resulting in a much sharper and more vibrant image on the screen.
EasyLink controls all HDMI-connected devices via HDMI CEC
You do not want to use several remote controls to control all your products in your home entertainment ecosystem. With EasyLink via HDMI-CEC, you will be able to use the STB remote control to control (e.g. switch on/off the system at one time) the other HDMI-CEC compliant devices. EasyLink uses the standard HDMI cable to transfer system commands. When you press a button on the STB remote control, it will automatically send relevant signals to the TV or other HDMI-CEC compliant devices.
Dolby Digital 5.1 audio output for full surround sound
Because Dolby Digital standards, the world's leading digital multi-channel audio standards, make use of the way the human ear naturally processes sound, you experience superb quality surround sound audio with realistic spatial cues.
Access Free-to-Air digital TV and radio channels
You want to continue watching all the traditional publicly broadcasted programmes, now in digital quality as well as any new TV channels available following digital switchover. No subscription or fee required.
2 digital tuners for recording 2 different channels
Instead of the usual single digital tuner found in most set-top boxes, 2 digital tuners are included in this product to allow dual reception and flexible viewing of your favourite TV programmes. No more difficult choices to be made on which programme to miss! You can either record 2 programmes simultaneously or watch one show, while recording the other one.
One Touch Pause Live TV freezes the action instantly
Pause Live TV puts you in absolute control. Once the recorder is turned on, a large built-in memory automatically starts recording the programme you are watching -- allowing you to pause, replay or save the programme, any time. If you need to take a break, you can pause your 'live' TV programme with just one touch of a button, and resume watching when it suits you.
Archives your HDD content to external drives via USB
Simply plug an external USB storage drives onto the product via the USB port, select and archive the files. The contents will be transferred onto the external drives, clearing space in the internal HDD for more recordings.
Plays MP3 and JPEG files from your USB drive
Simply plug your device into the USB port on your set top box. Your digital music and photos will be played directly from the device. Now you can share your favourite moments with family and friends.
Technical Specifications
-
Tuner/Reception/Transmission
- Digital TV
- Terrestrial
- Demodulation type
-
- COFDM 2K/8K
- MPEG-2 DVB compliant
- MPEG-4 DVB compliant
-
- Input frequency range
- 174 to 862 MHz
- Loop through frequency range
- 47-862 MHz
- Number of TV tuners
- 2
-
Video Recording
- Recording enhancements
- One Touch Record (OTR)
-
Storage Media
- HDD recording enhancements
-
- Instant Replay
- Pause Live TV
- Time Shift Buffer
- Hard disk space used
- Hard disk space free
-
- Extra hard disk technology
- Simultaneous record and playback
- HDD Type
- 3.5" HDD
-
Connectivity
- Terrestrial antenna interface
-
- RF in, IEC 169-2
- RF out, (bypass) IEC 169-2
-
- Video output — Digital
- HDMI
- TV scart out
-
- RGB
- CVBS
- Audio L/R
-
- VCR scart out
-
- CVBS
- Audio L/R
-
- Audio Output — Analogue
- Audio L/R (cinch)
- Audio Output - Digital
-
- Coaxial (cinch)
- Optical (TOSLINK)
-
- USB
- USB 2.0
-
Convenience
- Child Protection
- Child Lock+Parental Control
- User convenience
-
- Electronic programming guide
- Automatic Overheat Warning
- On-screen Display
-
- Display Type
- VFD display
- Ease of Installation
- Autoinstall
- Parental control
-
- Lock with PIN code
- Child timer
-
- Signal strength indication
- Yes
- User Interface
-
- 7-day Electronic programme Guide
- Automatic programme list update
- Multiple subtitles supported
- Now and Next ESG
- On Screen Display on TV
- Software upgrade over the air
- TV and Radio mode
-
-
Audio Playback
- Compression format
- MP3
- Playback Media
- USB flash drive
-
Still Picture Playback
- Picture Compression Format
- JPEG
- Playback Media
- USB flash drive
-
Video Decoding
- Compression Format
-
- MPEG-4 (HD)
- MPEG-4 (SD)
- MPEG-2 MP@HL (high definition)
- MPEG-2 MP@ML (std definition)
-
- Aspect Ratio
-
- 16:9
- 4:3 Letterbox
- 4:3 Pan Scan
-
- Resolution
- up to 1920 x 1080 interlaced
- Video bitrate
- Up to 20 Mbit/s
- Copy/content protection
-
- HDCP on HDMI
- Macrovision on EXT1/EXT 2
-
-
Audio Decoding
- Compression format
-
- Dolby Digital Plus (Enhanced A
- Dolby Digital
- MPEG layer I/II
- MPEG4 HE-AAC
- MPEG4 LC-AAC
- MP3
-
- Sound system
-
- Dolby Digital
- Multi-channel downmixing
- Stereo
- Mono
-
-
Power
- Mains power
- 230 V, 50 Hz
- Power consumption
- 22.8 W
- Low power mode (ECO)
- < 2 W
-
Dimensions
- Product width
- 360 mm
- Product depth
- 220 mm
- Product height
- 55 mm
- Carton dimensions (WxDxH)
- 480 x 290 x 120mm
-
Accessories
- Included accessories
-
- HDMI cable
- Mains cord
- Remote Control
- User Manual
- Quick start guide
-
