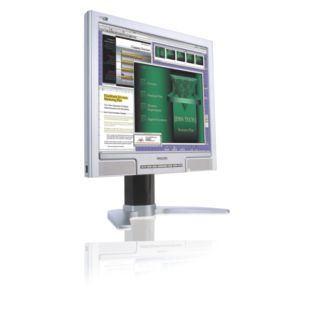

    LCD monitor

    170B7CS/05

    LCD monitor

    170B7CS/05

    Extremely convenient display for business users

    With SmartManage LAN-based remote monitor management, Philips Perfect Panel™ warranty and a full range of convenient features, the 170B7 delivers great and convenient display at a very attractive total cost of ownership. See all benefits

    Unfortunately this product is no longer available

    Extremely convenient display for business users

    With SmartManage LAN-based remote monitor management, Philips Perfect Panel™ warranty and a full range of convenient features, the 170B7 delivers great and convenient display at a very attractive total cost of ownership. See all benefits

    Extremely convenient display for business users

    With SmartManage LAN-based remote monitor management, Philips Perfect Panel™ warranty and a full range of convenient features, the 170B7 delivers great and convenient display at a very attractive total cost of ownership. See all benefits

    Unfortunately this product is no longer available

    Extremely convenient display for business users

    With SmartManage LAN-based remote monitor management, Philips Perfect Panel™ warranty and a full range of convenient features, the 170B7 delivers great and convenient display at a very attractive total cost of ownership. See all benefits

    Similar products

    See all Office monitors

    Make it a bundle and save Make it a bundle and get 1 item for free

    All your needs covered in one purchase

    Bundle price

    Skip this

    Choose one of the following: Choose one of the following products:

    Add accessories

    LCD monitor

    LCD monitor

    - {discount-value}

    Total:

    recurring payment

    Extremely convenient display for business users

    • 43 cm (17")
    • SXGA
    Dual input accepts both analogue VGA and digital DVI signals

    Dual input accepts both analogue VGA and digital DVI signals

    Dual input provides connectors to accommodate input of both analogue VGA and digital DVI signals.

    Tilt, swivel and height-adjust for an ideal viewing position

    Tilt, swivel and height-adjust for an ideal viewing position

    The Compact Ergo Base is a people-friendly Philips monitor base that tilts, swivels and height-adjusts so each user can position the monitor for maximum viewing comfort and efficiency.

    USB port for convenient peripheral connections

    USB port for convenient peripheral connections

    The USB port allows the user to conveniently connect their plug and play multimedia devices such as USB memory devices, camera, portable HDD, Web camera, PDA, Printer and many other devices that use USB connection. The conveniently located USB 2.0 port on the monitor allows USB 2.0 signals to pass through to the computer. Note that many devices like cameras and HDD may need to be powered on independently, as they have higher power requirements than the monitor USB port can provide.

    Empowered for Windows Vista

    Philips Vista-ready monitors are empowered for vibrant, exciting display of this new, visually sophisticated and demanding Windows operating system, designed to enhance your entertainment experience, make you more productive and help you control your computing experience at home and in the office, making viewing, finding and organising information for work or play quick, efficient and easy.

    SmartManage compatibility enables LAN-based asset management

    SmartManage is a system for monitoring, managing and checking the status of display devices as well as delivering remote support to users who experience difficulties - all accomplished over a LAN.

    Power consumption below the industry average

    Reduction of the electrical power required to operate a device.

    ISO 13406-2 Class I compliant dot defect-free display

    Bright dots and dark dots are defects in an LCD panel. While some manufacturers still consider bright and dark defects in an LCD panel an inevitable part of the manufacturing process, Philips doesn't. Philips monitors, compliant with ISO 13406-2 Class I standard, are produced with zero tolerance for LCD panel defects and backed by Philips PerfectPanel™ globally valid warranty providing repair or replacement of any LCD monitors that display even a single defective bright or dark dot.

    5 ms fast response time

    On-Off response time is the period required for a liquid crystal cell to go from active (black) to inactive (white) and back to active (black) again. It is measured in milliseconds. Faster is better: lower response time means faster transitions and, therefore, results in fewer visible image artefacts in the display of transition of texts and graphics. On-Off response time is a more important measure in the display of business content like documents, graphs and photos.

    SXGA 1280 x 1024 resolution for sharper display

    For graphics monitors, the screen resolution signifies the number of dots (pixels) on the entire screen. For example, a 1280-by-1024 pixel screen is capable of displaying 1280 distinct dots on each of 1024 lines, or about 1.3 million pixels.

    Easy to adjust display settings with Philips SmartControl

    PC software for fine-tuning display performance and settings. Philips offers users two choices for display setting adjustment. Either navigate the multilevel On Screen Display menu through buttons on the display itself or use the Philips SmartControl software to easily adjust the various display settings in a familiar way.

    Built-in speakers for audio without desktop clutter

    A pair of stereo speakers built into a display device. It can be visible front firing, or invisible down firing, top firing, rear firing etc, depending on model and design.

    Technical Specifications

    • Connectivity

      Audio output
      Stereo Audio (3.5 mm jack) 1 x
      Signal Input
      • VGA (Analogue)
      • DVI-D
      • PC Audio in
      USB
      USB 2.0 x 1
      Sync Input
      • Composite Sync
      • Separate Sync
      • Sync on Green
      Sync input impedance
      2.2k  ohm
      Video input impedance
      75  ohm
      Video input signal levels
      0.7 Vpp
    • Picture/Display

      Panel Size
      17"/43 cm
      LCD panel type
      • 1280 x 1024 pixels
      • Anti-glare polariser
      • RGB vertical stripe
      Pixel pitch
      0.264 x 0.264 mm
      Optimum resolution
      1280 x 1024 @ 60 Hz (digital input)
      Brightness
      300  cd/m²
      Display colours
      16.7 M
      Contrast ratio (typical)
      800:1
      Response time (typical)
      5  ms
      Viewing angle
      • 176º (H)/170º (V)
      • @ C/R > 5
      Horizontal Scanning Frequency
      30 - 83 kHz
      Vertical Scanning Frequency
      56 - 76 Hz
      Maximum Resolution
      1280 x 1024 @ 75 Hz (digital input)
      Effective viewing area
      337.9 x 270.3 mm
      sRGB
      Yes
      Video Dot Rate
      140 MHz
      White Chromaticity, 6500K
      x = 0.313/y = 0.329
      White Chromaticity, 9300K
      x = 0.283/y = 0.297
    • Convenience

      Plug and Play Compatibility
      • DDC/CI
      • sRGB
      • Windows 98/ME/2000/XP/Vista
      Built-in Audio
      2 W RMS x 2 Stereo Speakers
      User convenience
      • On-screen Display
      • SmartManage enabled
      Monitor Controls
      • Auto
      • Brightness Control (Up/Down)
      • Left/Right
      • Menu (OK)
      • Power On/Off
      • Volume control
      Regulatory approvals
      • CE Mark
      • EMC
      • Energy Star
      • FCC-B, UL, CSA
      • SEMKO
      • TCO '03
      • TÜV/GS, TÜV Ergo
      OSD Languages
      • English
      • French
      • German
      • Italian
      • Simplified Chinese
      • Spanish
      Other convenience
      • Kensington lock compatible
      • FlexiHolder
      Swivel
      +/- 60°
      Tilt
      -5° to 25°
      VESA Mount
      100 x 100 mm
    • Power

      Power supply
      • Built-in
      • 100-240 VAC, 50/60 Hz
      Consumption (On mode)
      33 W (Typical)
      Power LED indicator
      • Operation - green
      • Standby/sleep - Amber
      Complies with
      Energy Star
      Consumption (Off Mode)
      < 1 W
    • Dimensions

      Box depth
      452  mm
      Set width (with stand)
      382.5  mm
      Box height
      182  mm
      Set width (with stand) (inch)
      15.1  inch
      Box width
      449  mm
      Set height (with stand)
      387.2  mm
      Set height (with stand) (inch)
      15.2  inch
      Set Width
      382.5  mm
      Height adjustment range
      60  mm
      Set depth (with stand)
      198.7  mm
      Set Height
      342.8  mm
      Set Depth
      61.5  mm
      Set depth (with stand) (inch)
      7.8  inch
      Set Width (inch)
      15.1  inch
      Temperature range (operation)
      5°C to 40°C
      Set Height (inch)
      13.5  inch
      Temperature range (storage)
      -20°C to 60°C
      Set Depth (inch)
      2.4  inch
      Box depth (inch)
      17.8  inch
      Box height (inch)
      7.2  inch
      Box width (inch)
      17.7  inch
      Product weight (+stand)
      5.2  kg
      Product weight (+stand) (lb)
      11.5  lb
      Weight incl. Packaging
      6.5  kg
      Weight incl. Packaging (lb)
      14.3 lb
      Relative humidity
      20% - 80%
      MTBF
      50,000 hrs
      Height adjustment range (inch)
      2.4  inch
    • Accessories

      Included accessories
      • AC Power Cord
      • Audio Cable
      • USB cable
      • VGA cable
      User Manual
      Yes
      Optional accessories
      Super Ergo Base

    What's in the box?

    Other items in the box

    • AC Power Cord
    • Audio Cable
    • USB cable
    • VGA cable
    • Optional accessories: Super Ergo Base
