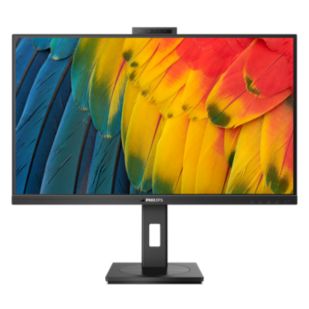

Business Monitor

LCD monitor with USB-C docking

24B1U5301H/01

Reviews Reviews

1 award

-{discount-value}

for more information, download here (PDF 563.0KB)

Images

Business Monitor LCD monitor with USB-C docking

24B1U5301H/01

Reviews Reviews

Daily routine simplified

This USB-C monitor is for data transfer, power delivery and watching videos. The integrated 5 MP webcam delivers sharp images, and the noise cancelling mic lets people hear you fine. Windows Hello Webcam for quick access and strong security. See all benefits

This product qualifies for VAT relief

If you're eligible for VAT relief on medical devices, you can claim it on this product. The VAT amount will be deducted from the price shown above. Look for full details in your shopping basket.

Daily routine simplified

This product qualifies for VAT relief

If you're eligible for VAT relief on medical devices, you can claim it on this product. The VAT amount will be deducted from the price shown above. Look for full details in your shopping basket.

Daily routine simplified

Make it a bundle and save Make it a bundle and get 1 item for free

All your needs covered in one purchase

Bundle price

Skip this

Choose one of the following: Choose one of the following products:

Add accessories

Business Monitor

LCD monitor with USB-C docking

- {discount-value}

Total:

recurring payment

RJ-45 to USB-C gives easy network connection with security

Simplify all peripherals from monitor to PC using one-cable docking USB Type-C connector, including networking, high-resolution video output from PC to monitor, and surfing on the Internet without an additional network cable, even without a LAN port on your notebook. RJ45 connection through USB-C offers a fast and secure connection when needed. Getting the fastest data speeds allows you to transfer data from a HDD to your PC faster than ever. Additionally, USB-C with power delivery can even enable you to power and charge your notebook from the monitor, eliminating the need for extra power cables.

IPS technology for full colours and wide viewing angles

IPS displays use advanced technology that gives you extra-wide viewing angles of 178/178 degrees, making it possible to view the display from almost any angle — even in 90-degree Pivot mode! Unlike standard TN panels, IPS displays gives you remarkably crisp images with vivid colours, making it ideal not only for Photos, films and web browsing, but also for professional applications that demand colour accuracy and consistent brightness at all times.

DisplayPort-out for connecting additional displays

With DisplayPort-out you can connect multiple high-resolution displays with just one cable from your first display to the PC. The ability to daisy chain multiple displays enables you to maintain a clean desktop without the hassle of too many wires.

Built-in KVM switch to easily switch between sources

With the MultiClient Integrated KVM switch, you can control two separate PCs with one monitor-keyboard-mouse setup. A convenient button allows you to quickly switch between sources. Handy with setups that require dual PC computing power or sharing one large monitor to show two different PCs.

MultiView enables simultaneous dual connection and view

With the ultra-high resolution Philips MultiView display, you can now experience a world of connectivity. MultiView enables active dual connect and view so that you can work with multiple devices like a PC and notebook simultaneously, for complex multitasking.

Webcam with noise-cancelling microphone for collaboration

This Philips monitor comes with a built-in 5 MP webcam, a noise-cancelling microphone, and speakers, making it perfect for working from home and collaborating remotely. The webcam is certified for Windows Hello and is equipped with advanced sensors for Windows Hello™ facial recognition, which conveniently logs you into your Windows devices in less than 2 seconds. The physical camera switch offers extra privacy when not in use. The noise-cancelling microphone and dual 5 watt integrated speakers deliver clear communications.

PowerSensor saves up to 75% energy costs

PowerSensor is a built-in "people sensor" that transmits and receives harmless infra-red signals to determine if the user is present and automatically reduces monitor brightness when the user steps away from the desk, cutting energy costs by up to 75 percent and prolonging monitor life.

SmartErgoBase enables user-friendly ergonomic adjustments

The SmartErgoBase is a monitor base that delivers ergonomic display comfort and provides cable management. The base can swivel, tilt and rotate to various angles to ensure maximum comfort. The height-adjustable stand guarantees the optimal viewing level, reducing the physical strains of a long workday, while cable management reduces cable clutter and keeps the workspace neat and professional.

TUV Eye Comfort certified to reduce eye fatigue

Philips displays meet TUV Rheinland Eye Comfort standard to prevent eye strain caused by prolonged computer use. With TUV Eye Comfort certification, Philips displays ensure flicker-free, low-blue mode, no disturbing reflections, a wide viewing angle, less reduction of image quality from different angles and ergonomic stand designs for an ideal viewing experience. Keep your eyes healthy and boost work productivity.

LightSensor for the perfect brightness with minimal power

LightSensor uses a smart sensor to adjust the picture brightness depending on the light conditions in the room for the perfect picture with minimal power usage.

Technical Specifications

Connectivity

Signal Input

HDMI 1.4 x 1, DisplayPort 1.4 x 1, USB-C x 1 (upstream, DP Alt mode, Data, PD up to 90 W)

Sync Input

Separate Sync

Audio (In/Out)

Audio out/Microphone in combo jack

RJ45

Ethernet LAN up to 1 G*, Wake on LAN

Signal Output

DisplayPort out x 1

HDCP

HDCP 1.4 (HDMI/DisplayPort/USB-C); HDCP 2.2 (HDMI/DisplayPort/USB-C)

HBR3

HBR 3 (DisplayPort, USB-C)

USB Hub

USB 3.2, Gen 2/10 Gbps, USB-C upstream x 1 (Data), USB-A downstream x 4 (with 1 for fast charge B.C 1.2), USB-C downstream x 1 (Data, PD 15 W)
Picture/Display
Panel Size

23.8 inch/60.5 cm

Aspect ratio

16:9

LCD panel type

IPS technology

Backlight type

W-LED system

Pixel pitch

0.2745 x 0.2745 mm

Brightness

300 cd/m²

Display colours

16.7 M (8 bit)

Colour gamut (typical)

NTSC 88%*, sRGB 105%*

Contrast ratio (typical)

1000:1

SmartContrast

50,000,000:1

Response time (typical)

4 ms (Grey to Grey)*

Viewing angle
- 178º (H)/178º (V)
- @ C/R > 10
Picture enhancement

SmartImage

Maximum resolution

1920 x 1080 @ 75 Hz

Effective viewing area

527.04 (H) x 296.46 (V)

Scanning Frequency

30–85 kHz (H) / 48–75 Hz (V)

sRGB

Yes

Flicker-free

Yes

Pixel Density

93 PPI

LowBlue Mode

Yes

Display Screen Coating

Anti-Glare, 3H, Haze 25%

EasyRead

Yes
Power Delivery

Max power delivery

USB-C up to 90 W (5 V/3 A, 7 V/3 A, 9 V/3 A, 10 V/3 A, 12 V/3 A, 15 V/3 A, 20 V/4.5 A)

Version

USB PD version 3.0
Convenience
Built-in Speakers

5 W x 2

Plug and Play Compatibility
- DDC/CI
- Mac OS X
- sRGB
- Windows 11 / 10 / 8.1 / 8 / 7
User convenience
- SmartImage
- Input
- User
- Menu
- Power On/Off
OSD Languages
- Brazil Portuguese
- Czech
- Dutch
- English
- French
- Finnish
- German
- Greek
- Hungarian
- Italian
- Japanese
- Korean
- Portuguese
- Polish
- Russian
- Simplified Chinese
- Spanish
- Swedish
- Traditional Chinese
- Turkish
- Ukrainian
Other convenience
- Kensington lock
- VESA mount (100 x 100 mm)
Control software

SmartControl

MultiView
- PIP/PBP mode
- 2 x devices
Built-in webcam

Pop-up 5.0 megapixel camera with a microphone and LED indicator (for Windows Hello)

KVM

Yes (USB-C/USB-C)

Noise cancellation

Yes
Stand

Height adjustment

150 mm

Pivot

-/+90 degree

Swivel

-/+ 180 degree

Tilt

-5/30 degree
Power
Power supply
- Built-in
- 100–240 VAC, 50–60 Hz
Off mode

Zero watts with AC switch

On mode

15.3 W (typ.) (EnergyStar test method)

Standby mode

0.3 W (typ.)

Power LED indicator
- Operation - White
- Standby mode - White (flashing)
Energy Label Class

E
Dimensions

Packaging in mm (W x H x D)

600 x 406 x 198 mm

Product without stand (mm)

540 x 323 x 51 mm

Product with stand (max height)

540 x 500 x 205 mm
Weight

Product with packaging (kg)

8.32 kg

Product with stand (kg)

5.50 kg

Product without stand (kg)

3.90 kg
Operating conditions

Altitude

Operation: +12,000 ft (3658 m), Non-operation: +40,000 ft (12,192 m)

Temperature range (operation)

0°C to 40* °C

Relative humidity

20%-80 %

Temperature range (storage)

-20°C to 60 °C

MTBF (demonstrated)

70,000 hrs (excluded backlight)
Sustainability
Environmental and energy
- PowerSensor
- LightSensor
- EnergyStar 8.0
- EPEAT*
- TCO Certified Edge
- RoHS
Post-consumer recycled plastic

85%

Recyclable packaging material

100 %

Specific Substances
- Mercury free
- PVC/BFR free housing
Compliance and standards
Regulatory Approvals
- CB
- CE Mark
- FCC Class B
- ICES-003
- CU-EAC
- EAEU RoHS
- TUV Ergo
- TUV/GS
- TUV Eye Comfort certified
- cETLus
Cabinet

Finish

Texture

Foot

Black

Front bezel

Black

Rear cover

Black
What's in the box?

Cables

HDMI cable, DisplayPort cable, USB-C to C/A Y cable, Power cable

Monitor with stand

Yes

User Documentation

Yes

Reviews

Be the first to review this item

"IPS" word mark / trademark and related patents on technologies belong to their respective owners.
Response time value equal to SmartResponse
NTSC Area based on CIE 1976
sRGB Area based on CIE1931
For Video transmission via USB-C, your Notebook/device must support USB-C DP Alt mode
Activities such as screen sharing and online streaming over the Internet can impact your network performance. Your hardware and network bandwidth will determine the overall audio and video quality.
For USB-C power and charging function, your Notebook/device must support USB-C standard Power Delivery specifications. Please check with your Notebook user manual or manufacturer for more details.
If your Ethernet connection seems slow, please enter the OSD menu and select USB 3.0 or a higher version that can support the LAN speed up to 1G.
When calculating energy costs saving from PowerSensor, both USB and Power delivery are excluded.
EPEAT rating is valid only where Philips registers the product. Please visit https://www.epeat.net/ for registration status in your country.
The monitor may look different from feature images.
